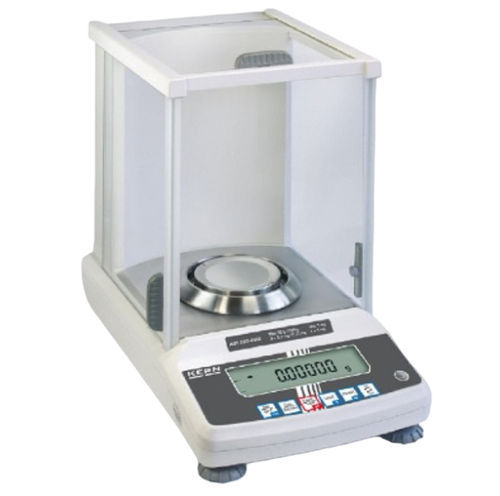

Electronic weighing machine ABT-NM

for dosingfor pharmaceutical productsstainless steel

Summary
KERN analytical balance ABT-NM designed for laboratory analytical weighing with a large glass draftshield (3 sliding doors) and a transparent dust cover supplied.

Main functions
Internal calibration program; dosing aid (high-stability mode and selectable filtering parameters); simplified formula creation and documentation (combined tare/print function, components automatically numbered and printed); programmable 4-digit identification number printed in the calibration report; automatic data outputs to PC/printer after each stabilization.

Description
Large LCD display (digit height 14 mm). Stainless steel weighing pan Ø 80 mm. Large glass draftshield with 3 sliding doors for comfortable access to the weighing chamber. Transparent dust cover included.

Technology and performance
Single-Cell sensor technology (monobloc load cell) ensuring stable temperature behavior, high mechanical robustness and high resistance to off-centre loads. Short stabilization times: approx. 4 s at readability [d] = 0.1 mg; approx. 10 s at readability [d] = 0.01 mg.

Operating conditions
Permissible ambient temperature: 10 °C to 30 °C. Approx. net weight: 7 kg.

Available models

• ABT-120-4NM
• ABT-220-4NM
• ABT-320-4NM
• ABT-100-5NM
• ABT-120-5DNM
• ABT-220-5DNM

Features / technical specifications

• Display: large LCD, digit height 14 mm
• Weighing pan: stainless steel, Ø 80 mm
• Total dimensions (with draftshield): L × D × H = 217 × 356 × 338 mm
• Weighing space (L × D × H): 168 × 172 × 223 mm
• Net weight: approx. 7 kg
• Permissible ambient temperature: 10 °C to 30 °C
• Internal calibration program (automatic if variation > 0.5 °C and timed every 4 h)
• Dosing aid: high-stability mode and filtering options
• Formula function: simplified creation/documentation with combined tare/print; components automatically numbered and printed
• Identification: programmable 4-digit ID (printed in calibration report)
• Data outputs: automatic export to PC/printer after each stabilization
• Draftshield: large glass enclosure with 3 sliding doors
• Transparent dust cover included
• Sensor technology: Single-Cell (monobloc load cell) — thermal stability, mechanical robustness and high resistance to off-centre loads
• Stabilization time: approx. 4 s (readability 0.1 mg), approx. 10 s (readability 0.01 mg)
