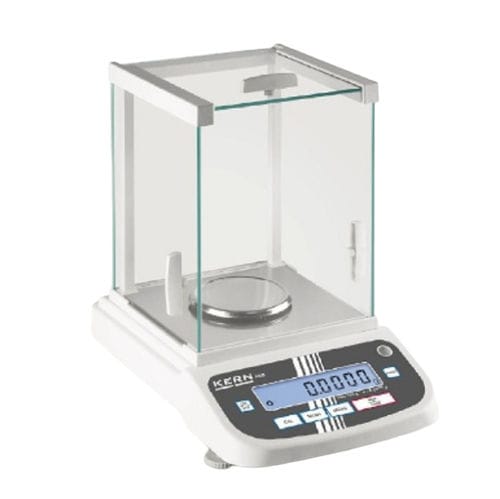

Electronic weighing machine ADB-ADJ

for fresh productsfor granulatesfor powders

Overview
Carat and analytical balance series ADB-ADJ. NEW KERN ADJ: internal adjustment program. KERN ADB: external CAL adjustment program. The ADB/ADJ 600-C3 is a compact carat balance with 0.001 ct readability and a 600 ct capacity. It features a spirit level and adjustable leveling feet, a large glass draft shield with three sliding doors, compact overall dimensions for space saving and an intuitive 6-key operation.

Main functions

• Internal adjustment program (KERN ADJ)
• External CAL adjustment program (KERN ADB)
• 0.001 ct readability (ADB 600-C3 model)
• Large backlit LCD, digit height 16 mm
• Spirit level and leveling screws for precise leveling
• Large glass draft shield with three sliding doors
• Ergonomic 6-key operation
• Stainless steel weighing pan Ø 90 mm

Dimensions
Weighing pan diameter: ∅ 90 mm
Total dimensions (including draft shield): KERN ADB/ADJ: 230 × 310 × 330 mm
KERN ADB-C/ADJ-C: 205 × 310 × 210 mm
Weighing space L × W × H: KERN ADB/ADJ: 170 × 160 × 205 mm
KERN ADB-C/ADJ-C: 170 × 160 × 110 mm
Permissible ambient temperature: 10 °C – 30 °C

Available models

• ADB-100-4
• ADB-200-4
• ADB-600-C3
• ADJ-100-4
• ADJ-200-4
• ADJ-600-C3

Technical specifications

• Type: Carat and analytical balance (ADB-ADJ series)
• Readability: 0.001 ct (ADB 600-C3)
• Weighing range: e.g. 600 ct for ADB 600-C3 (other models with different ranges)
• Adjustment program: internal (ADJ) and external CAL (ADB)
• Display: backlit LCD, digit height 16 mm
• Weighing pan: stainless steel, ∅ 90 mm
• Draft shield: glass, 3 sliding doors
• Total dimensions: ADB/ADJ 230 × 310 × 330 mm; ADB-C/ADJ-C 205 × 310 × 210 mm
• Weighing space: ADB/ADJ 170 × 160 × 205 mm; ADB-C/ADJ-C 170 × 160 × 110 mm
• Operating temperature: 10 °C to 30 °C
• Operation: 6-key control
