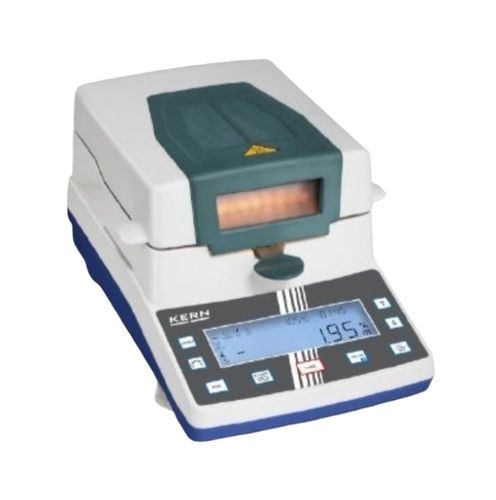

Laboratory moisture balance DAB series

electronicanalyticalg

Description
Drying balance intended for the rapid and reliable determination of moisture content in liquid, porous and solid materials by the thermogravimetric method.

Operation and general features
User-friendly moisture analyzer equipped with a high-quality quartz glass halogen heating system. Resolution available down to 10 mg depending on model. Drying is performed by a 400 W quartz glass halogen with adjustable temperature between 40 and 199 °C. Observation window above the sample useful during initial setup of the drying process. Internal memory for drying procedures and measurements; the last measured value remains displayed until replaced by a new measurement.

Included
50 sample test pans included.

Display and outputs
Backlit graphic LCD display with digit height 14 mm. Serial output: RS232.

Modes and uses

• Drying modes: STANDARD, FAST, SLOW
• Short drying time, ideal for recurring tests
• Easy to operate

Available models
DAB 100-3
DAB 200-2
DAB 100-3IR
DAB 200-2IR

Specifications / technical data

• Capacity: 110 g or 200 g depending on model
• Resolution: 0.001 g or 0.01 g depending on model (measurement resolution available up to 10 mg)
• Heating: 400 W quartz glass halogen
• Adjustable temperature range: 40 °C to 199 °C
• Display: backlit graphic LCD
• Digit height: 14 mm
• Internal memory for drying processes and measurements
• Output: RS232
• Drying modes: STANDARD, FAST, SLOW
• Included accessories: 50 sample test pans
• Notable feature: observation window above the sample
