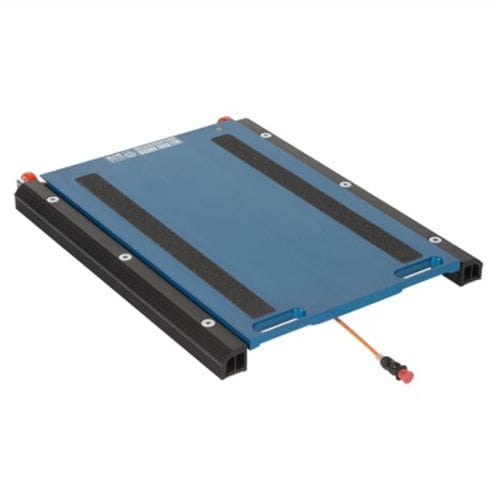

Aircraft wheel scale WWSE

corrosion-resistantfor heavy loadsfor vehicles

Description
Discover the mobile wheel weighing platform designed for large vehicles such as aircraft landing gear assemblies, heavy road vehicles and construction machinery. Robust, high-precision platforms engineered to provide reliable and durable measurements in demanding environments.

Main features

• Platform capacity: 0…6 t to 0…15 t
• Platform dimensions: 700 x 450 mm
• Weighing surface: 600 x 365 mm
• Reinforced aluminium structure
• Stainless steel load cells with IP68 protection
• 10 m PUR cable with IP68 connector on platform and M12 connector to indicator
• Hermetic junction box with IP68 rating
• Vulcanised anti-slip rubber underside
• Double handle for easy handling
• Available in CE-M approved version and high-resolution version

Benefits

• Durability and accuracy for reliable measurements
• Design suited to harsh environments
• Easy handling and connection to a weight indicator
• Improved safety thanks to anti-slip rubber
• Approved versions for legal-for-trade weighing

Available models
WWSE6T-2 / Dimensions: 700x450x58 / Capacity: 6000 kg / d: 2 kg
WWSE10T-2 / Dimensions: 700x450x58 / Capacity: 10000 kg / d: 2 kg
WWSE15T-2 / Dimensions: 700x450x58 / Capacity: 15000 kg / d: 5 kg

Approved version
WWSE6T-2 -M / Dimensions: 700x450x58 / Capacity: 6000 kg / d: 2 kg / d (M): 2 kg
WWSE10T-2-M / Dimensions: 700x450x58 / Capacity: 10000 kg / d: 2 kg / d (M): 2 kg
WWSE15T-2 -M / Dimensions: 700x450x58 / Capacity: 12500 kg / d: 5 kg / d (M): 5 kg

Note
*Price per platform; indicator not included (available as an option).

Specifications / technical data

• Platform dimensions: 700 x 450 mm
• Weighing surface: 600 x 365 mm
• Thickness / height: 58 mm (depending on model)
• Unit weight: 26 kg
• Structure material: reinforced aluminium
• Load cells: stainless steel load cells (IP68)
• Cable: 10 m PUR, IP68 connector (platform) and M12 (indicator)
• Junction box: hermetic, IP68
• Underside coating: vulcanised anti-slip rubber
• Options: CE-M approved version and high-resolution version
