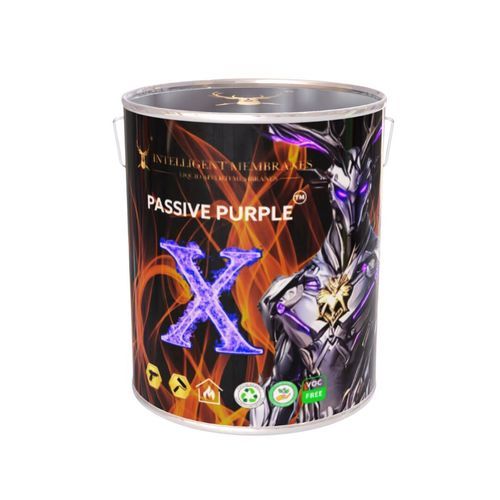

Concrete coating PASSIVE PURPLE X

for bricks

Product overview
Passive Purple X 10 kg is an airtight, vapour-open, water-resistant coating and vapour-control membrane for fire-conscious airtight builds. It is applied by airless spray or roller and supplied in white; cream, black and purple variants are available.

Key features

• Fire rating: Euroclass B
• Watertight while vapour-permeable
• Airtight membrane formation
• UV-stable
• Anti-fungus (rating 0)
• Self-cleaning / reduced dirt pickup due to UV netting
• Crack-bridging capacity
• Carbonation block and realkalising effect on concrete
• Protection against salts for concrete structures
• Usable as anti-carbonation protective coating on concrete/cement
• Suitable for internal and external use
• Smoke-tight
• Allows controlled moisture management (vapour release while ensuring airtightness)

Tested & Certified

• Reaction to fire: Euroclass B-s1,d0 (EN 13501-1 on suitable A1 substrates ≥653 kg/m³) and ASTM E84 Class A (Flame Spread 0 / Smoke 15)
• Watertight: Class W1 (EN 13859-2) and water permeability Class W3 (EN 1062-3); near-zero water absorption (EN 16302)
• Breathable / vapour-open: Sd ≈ 0.6 m (EN ISO 12572)
• Crack-bridging: A3 (23°C) / A4 (-10°C) (EN 1062-7); CO₂/carbonation barrier Class C1 (EN 1062-6)
• UV-stable (strength increases after 500 h UV)
• Low-emission: EMICODE EC2
• Anti-fungus: rating 0
• Kiwa BDA Agrément (BAW-21-214-P-A-UK)
• Passive House component (phB)
• US ICC-ES AC212 water-resistive barrier

Why choose Passive Purple X?

• High productivity: with an airless spray one operator can cover large façade areas (example up to ~300 m² depending on conditions)
• VOC-free: water-based, no volatile organic compounds
• Easy application: airless spray or roller
• Durable weatherproof membrane: watertight and vapour-control with UV resistance
• Fire rated: Class B
• Breathable while ensuring airtightness for moisture management

Uses & Directions of use

• Suitable substrates: insulation panels, concrete and brick walls, fibre cement boards, engineered wood panels / OSB
• Applications: façade refurbishment, retrofit, protective coating on concrete to reduce carbonation, smoke- and airtightness detailing
• Preparation: remove salt efflorescence, dust, loose parts and standing water; fill holes/joints if necessary
• Conditions: apply at substrate temperature > 5°C (follow product guidance for specific cases); application on damp surfaces allowed if no standing water; do NOT add water or solvents
• Do not apply in full sunlight or during rain
• Application: apply two layers; allow first coat to dry before second; clean tools with water

Technical data (summary)

• Usage: External or Internal
• Applied by: Roller or Spray (airless)
• Colours: White, Cream, Black, Purple
• Size: 10 kg pack
• Fire rating: Euroclass B-s1,d0 (EN 13501-1) ; ASTM E84 Class A
• Breathability: Sd ≈ 0.6 m (EN ISO 12572)
• Watertight: Class W1 (EN 13859-2) ; water permeability Class W3 (EN 1062-3)
• Crack-bridging: A3 / A4 (EN 1062-7)
• Anti-fungus: rating 0
• VOC: water-based, VOC-free

Quality assurance
Installation and QA record sign-off sheet (installation QA), technical data sheet (TDS), SDS and other test reports are available for download from the product documentation.
