Finishing paint PASSIVE PURPLE RETROFIT

liquidfor the building industryfor wall

Overview
Here at Intelligent Membranes, we have a range specifically for retrofitting air tightness and vapour control. The Retrofit Airtightness Spray/Roller Paint Passive Purple Retrofit is designed for vapour control and energy efficiency. Airtightness and controlling vapour equals better energy efficiency and a healthier indoor environment for occupants.

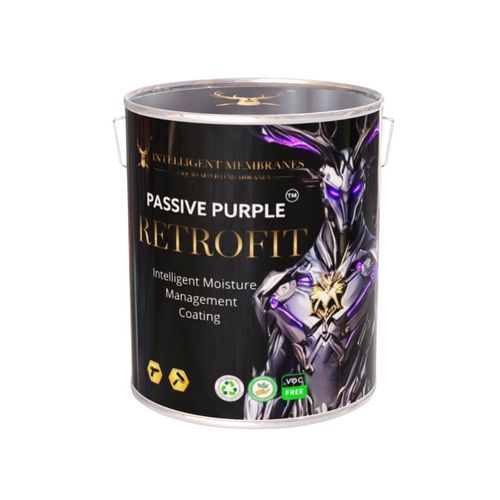

Passive Purple Retrofit
Passive Purple Retrofit is a liquid membrane formulation that adheres to the substrate, impregnating the surface to make it very difficult to damage. Unlike paper membranes that can be susceptible to cuts, this liquid membrane fills holes, cracks, penetration leaks and problem areas to create an airtight substrate. It is suitable for spray or roller application and supplied in a 10kg size.

Tested & Certified — worldwide

• French A+ indoor-air rating & Finnish M1 class — very low VOC emissions (EN 16516 / RTS)
• Passive House Institute Class A airtight — 0.02 m³/h·m² @ 50 Pa (EN 12114)
• Air barrier material — 0.02 L/s·m² at 75 Pa (ASTM E2178 · ICC-ES ESR-4715)
• Reaction to fire — Class A to ASTM E84; Euroclass C-s1,d0 to EN 13501-1 (B-s1,d0 with FRED)
• Watertight (EN 14891) and intelligent vapour control, Sd ~0.8–40 m (EN ISO 12572)
• Strong adhesion — steel 2.7, CLT 1.83, gypsum 1.6, brick 1.5 N/mm² (EN ISO 4624)
• 10/10 mould resistance (ASTM D3273); radon & methane barrier; EPD (EN 15804)
• Certifications: ICC-ES ESR-4715, Passivhaus certified & BBA approved

Related guides

• How to Retrofit Vapour Control Without the Mess
• My Builder Forgot the Vapour Control Layer? Here’s How to Fix It
• EnerPHit Explained – The Passivhaus Standard for Old Buildings

Quality assurance
Installation & QA Record sign-off sheet available for this product (IM-QA-07).

Technical specifications

• Product collection: Passive Purple
• Commercial name: Passive Purple Retrofit
• Colour: Purple
• Usage: External (retrofit airtightness)
• Application method: Spray or Roller
• Sizes available: 10 kg (this product)
• Passive House Institute Class A airtightness: 0.02 m³/h·m² @ 50 Pa (EN 12114)
• Air barrier performance: 0.02 L/s·m² at 75 Pa (ASTM E2178 · ICC-ES ESR-4715)
• Reaction to fire: Class A (ASTM E84); Euroclass C-s1,d0 (EN 13501-1) — B-s1,d0 when used with FRED
• Watertight: compliant with EN 14891
• Intelligent vapour control / Sd range: approximately 0.8–40 m (EN ISO 12572)
• Adhesion (EN ISO 4624): steel 2.7 N/mm²; CLT 1.83 N/mm²; gypsum 1.6 N/mm²; brick 1.5 N/mm²
• Mould resistance: 10/10 (ASTM D3273)
• Additional: radon & methane barrier; EPD (EN 15804); ICC-ES ESR-4715, Passivhaus certified & BBA approved
