Primary shredder 100-90S
four shaftpapermetal

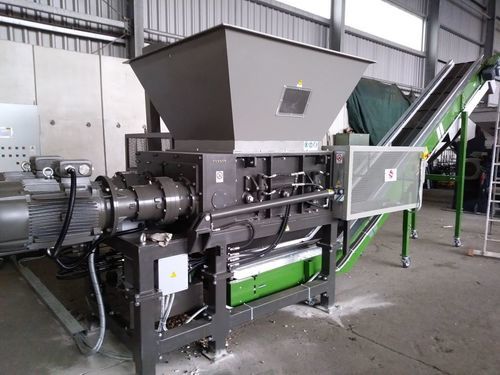

Primary shredder - 100-90S - ISVE - four shaft / paper / metal
Primary shredder - 100-90S - ISVE - four shaft / paper / metal
Primary shredder - 100-90S - ISVE - four shaft / paper / metal - image - 2
Primary shredder - 100-90S - ISVE - four shaft / paper / metal - image - 3
Primary shredder - 100-90S - ISVE - four shaft / paper / metal - image - 4
Primary shredder - 100-90S - ISVE - four shaft / paper / metal - image - 5
Add to favorites
Compare this product

Characteristics

Type
primary
Number of shafts
four shaft
Application
plastic, for wood, paper, for plastic waste, industrial waste, for cardboard, metal, tire, for PET bottles, fabric, pallet
Other characteristics
heavy-duty
Power

44,000 W

Output

Max.: 1,400 kg/h
(3,086.47 lb/h)

Min.: 1,000 kg/h
(2,204.62 lb/h)

Rotational speed

18 rpm
(113 rad.min-1)

Machine length

1,600 mm
(63 in)

Machine width

1,450 mm
(57 in)

Machine height

2,350 mm
(93 in)

Description

Main features:
  • cutting chamber: 1000×900 mm
  • installed power: 44 kW (2 × 22 kW) — 60 HP (2 × 30 HP)
  • transmission: gear transmission, oil bath with steel gears and pinions
  • number of cutter shafts: 2
  • number of tempered cutters (25 mm thick): 40
  • number of input shafts/discs: 2 input shafts, 40 inlet discs
  • average cutter speed: 18 rpm
  • production capacity: approx. 1–1.4 T/hour
  • safety equipment: emergency stop, hopper closure contact, frontal gate with safety micro-gate


Accessories on request:
  • interchangeable hopper
  • interchangeable screen (to define final particle size)
  • custom-made base


Notes on use:
  • Medium‑heavy industrial shredder designed for processing a wide range of waste, including bulky items. Suitable for in-line continuous operation. Recommended feed materials include: large wood pieces, pallets, rags, plastics, leather, tyres, paper, cardboard, packaging, polyethylene straps, plastic films, PET bottles, metal sheet containers, various containers, upholstery, faesite, bumpers, trunks, waxed tarpaulins, paper documentation, plastic offcuts, extrusion start/end sprues, etc.


Characteristics of the shredder:
  • high‑thickness electrowelded sheet steel support
  • bearing housings for barrel roller bearings with sealing against dust and liquids
  • interchangeable wear‑resistant side plates with separation cavity between cutting chamber and bearing flanges
  • high‑thickness shafts fitted with 40 special wear‑resistant steel cutters and 40 inlet discs to facilitate gripping of bulky bodies
  • tool (cutter) thickness: 25 mm
  • stepped arrangement of cutter teeth for improved gripping and cutting progression
  • 2 planetary gearboxes with rotation axes parallel to cutter axis
  • 2 multi‑voltage, multi‑frequency 22 kW motors, PREMIUM efficiency class (IE3)
  • oil bath transmission system with steel gears and pinions
  • hopper in electrowelded sheet metal for frontal or top loading
  • base equipped with 3 protection nets and frontal gate with safety micro‑gate


Control system features:
  • electrical panel compliant with EEC/CE standards, equipped with a torque limiter that reverses cutter rotation in case of overload
  • PLC SIEMENS S7‑1200 for control of plant peripherals
  • 6" colour touch screen for adjustment of machine parameters
  • software prepared for control of loading systems, refinement mill and extraction/suction systems
  • emergency stop and plant shutdown functions
  • ISVE MAINTENANCE PROGRAM: maintenance scheduler displayed on the touch screen
  • predisposition for TELEAST system and "SAFETY SERVER CONNECTION ISVE" (real‑time monitoring of machine parameters on ISVE server)
  • execution according to CE standards


ACCESSORIES:
  • ISVE Server Connect: additional internet connection module with automatic monitoring service on ISVE server
  • Hydraulic pusher with the following characteristics:
    • robust frame made of electro‑welded steel profiles to facilitate handling of bulky bodies
    • fixing plate to the machine body
    • manual control selector
    • protection nets
    • hydraulic cylinder for pusher drive
    • hydraulic power unit equipped with gear pump and 2.2 kW motor, thermostatted, with oil cooling radiator
    • management and control from the shredder electrical panel


Characteristics / technical specifications:
  • Model designation: 100-90S
  • Cutting chamber: 1000 × 900 mm
  • Installed power: 44 kW (2 × 22 kW)
  • Transmission: gear transmission, oil bath with steel gears and pinions
  • Number of cutter shafts: 2
  • Number of tempered cutters: 40 (tool thickness 25 mm)
  • Number of input shafts: 2; inlet discs: 40
  • Average cutter speed: 18 rpm
  • Production capacity: approx. 1–1.4 T/hour
  • Motors: 2 × 22 kW multi‑voltage/multi‑frequency, IE3
  • Control: SIEMENS S7‑1200 PLC; 6" colour touch screen; torque limiter with reversing
  • Standards: CE execution
