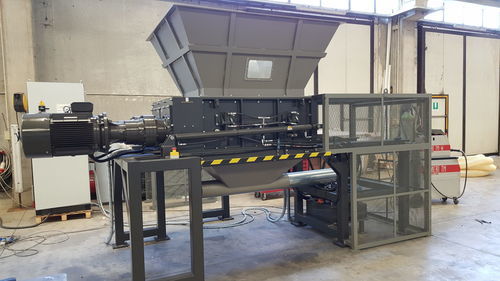

Four shaft shredder 120-90Spapermetaltire
Add to favorites
Compare this product
Characteristics
- Number of shafts
- four shaft
- Application
- paper, for wood, for waste, for plastic waste, for PP, industrial waste, for PET, for cardboard, metal, pallet, tire, for PE, plastic, fabric
- Other characteristics
- energy-efficient, heavy-duty, reinforced
- Power
44,000 W
- Output
Min.: 1,000 kg/h
(2,204.62 lb/h)Max.: 1,400 kg/h
(3,086.47 lb/h)- Rotational speed
18 rpm
(113 rad.min-1)- Machine length
1,800 mm
(71 in)- Machine width
1,450 mm
(57 in)- Machine height
2,350 mm
(93 in)
Description
Main features:
Accessories on request:
Notes on use:
Characteristics of the shredder:
Control system features:
Accessories (detailed):
Technical characteristics / specifications:
- cutting chamber: 1000×900 mm (also indicated 1200×900 mm in detailed section)
- installed power: 44 kW total (22 kW + 22 kW) — 60 HP (30 HP + 30 HP)
- transmission: gear drive, oil bath with steel gears and pinions
- number of cutter shafts: 2
- number of tempered cutters (tool thickness 25 mm): 40 (detailed section mentions 48 specially hardened cutters)
- number of input shafts: 2
- number of introducer discs: 40 (detailed section mentions 48)
- nominal medium rpm: 18
- estimated production: 1–1.4 t/hour (depending on material)
- safety equipment: emergency stop, hopper closure contact, protection nets and safety micro gate
Accessories on request:
- interchangeable hopper
- interchangeable screen (to define output grain size)
- custom-made base
Notes on use:
- Medium‑heavy industrial shredder designed for diverse waste streams, including bulky items.
- Suitable for in-line continuous operation.
- Recommended materials: large wood pieces, pallets, rags, plastics, leather, tyres, paper, cardboard, packaging, polyethylene straps, plastic films, PET bottles, metal sheet containers, various containers, upholstery, faesite, bumpers, trunks, waxed tarpaulins, paper documentation, plastic scraps, extrusion start/end sprues, etc.
Characteristics of the shredder:
- Heavy‑gauge electrowelded steel frame
- bearing housings for cylindrical roller bearings with sealing against dust and liquids
- interchangeable wear‑resistant side plates with separation cavity between cutting chamber and bearing flanges
- thick shafts with nr. 48 special wear‑resistant steel cutters and nr. 48 introducer discs to aid gripping of bulky bodies (as indicated in detailed section)
- tool (cutter) thickness: 25 mm
- staggered cutter tooth arrangement for improved grip and cutting progression
- 2 planetary gearboxes with rotation axes parallel to cutter axis
- 2 multi‑voltage, multi‑frequency motors 22 kW each, PREMIUM efficiency class (IE3)
- oil bath transmission with steel gears and pinions
- hopper in electrowelded sheet metal for frontal or top loading
- base equipped with 3 protection nets and frontal gate with safety micro gate
- approx. weight: 5 tonnes
Control system features:
- electrical panel compliant with EEC/CE standards with torque limiter that reverses cutter movement on overload
- PLC SIEMENS S7-1200 for peripheral control
- 6" colour touch screen for parameter adjustment
- software prepared for control of loading systems, refiner mill and suction system
- emergency stop and plant stop control functions
- ISVE MAINTENANCE PROGRAM: maintenance schedule displayed on touch screen
- predisposition for TELEAST system and "SAFETY SERVER CONNECTION ISVE" for real-time parameter monitoring from ISVE server
- execution according to CE standards
Accessories (detailed):
- ISVE Server Connect: additional internet connection module with automatic monitoring service on ISVE server
- Hydraulic pusher:
- electrowelded steel profile frame to assist feeding of bulky bodies
- fixing plate to machine body
- manual control selector
- protection nets
- hydraulic cylinder for pusher drive
- hydraulic power unit with gear pump and 2.2 kW motor, thermostated, with oil cooling radiator
- management and control from the shredder electrical panel
Technical characteristics / specifications:
- Model / denomination: 120-90S
- Cutting chamber: 1000×900 mm (also referenced as 1200×900 mm in characteristics)
- Installed power: 44 kW total (22 kW + 22 kW)
- Transmission: gears, oil bath system with steel gears and pinions
- Number of cutter shafts: 2
- Number of tempered cutters: 25 mm thickness (listed as 40 in some sections; detailed section references 48 cutters)
- Number of introducer discs: 40 (detailed section references 48)
- Nominal medium rpm: 18
- Estimated production: 1–1.4 t/hour
- Tool (cutter) thickness: 25 mm
- Motors: 2 multi‑voltage, multi‑frequency 22 kW motors, IE3
- Gearboxes: 2 planetary gearboxes
- Hopper: electrowelded sheet metal for frontal or top loading (interchangeable optional)
- Interchangeable screen: optional, defines output size
- Safety: emergency stop, hopper closure contact, torque limiter, safety micro gate
- Weight: approx. 5 tonnes
- Control: PLC SIEMENS S7-1200, 6" colour touch screen
- Standards: CE execution
