Four shaft shredder 100-100S
papermetaltire

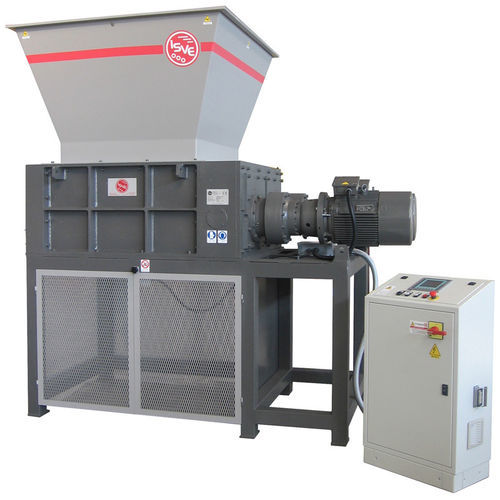

Four shaft shredder - 100-100S - ISVE - paper / metal / tire
Four shaft shredder - 100-100S - ISVE - paper / metal / tire
Four shaft shredder - 100-100S - ISVE - paper / metal / tire - image - 2
Four shaft shredder - 100-100S - ISVE - paper / metal / tire - image - 3
Four shaft shredder - 100-100S - ISVE - paper / metal / tire - image - 4
Four shaft shredder - 100-100S - ISVE - paper / metal / tire - image - 5
Four shaft shredder - 100-100S - ISVE - paper / metal / tire - image - 6
Four shaft shredder - 100-100S - ISVE - paper / metal / tire - image - 7
Add to favorites
Compare this product

Characteristics

Number of shafts
four shaft
Application
for wood, paper, for plastic waste, for cardboard, metal, tire, plastic, for PET bottles, fabric, pallet
Other characteristics
rugged, heavy-duty, with conveyor
Power

44,000 W

Output

Min.: 1,500 kg/h
(3,306.93 lb/h)

Max.: 2,500 kg/h
(5,511.56 lb/h)

Rotational speed

18 rpm
(113 rad.min-1)

Machine length

2,770 mm
(109 in)

Machine width

1,350 mm
(53 in)

Machine height

2,757 mm
(109 in)

Description

Main features:
  • Product type: four-shaft industrial shredder (2 cutter shafts + 2 conveyor shafts)
  • Model: 100-100S
  • Cutting chamber: 1000 × 1000 mm
  • Installed power: 44 kW (22 kW + 22 kW) – 60 HP (30 + 30 HP)
  • Drive: gear transmission, oil bath with steel gears and pinions
  • Cutter shafts: 2 (25 hardened cutters, tool thickness 40 mm)
  • Conveyor/feeder shafts: 2 (25 conveyor disks)
  • Average cutter speed: approx. 18 rev/min
  • Reference production rate: 1.5–2.5 t/h (depends on material and screen)
  • Safety: emergency stop, hopper closed contact; manufactured to CE standards


Accessories on request:
  • Interchangeable hopper
  • Interchangeable screen (to define particle size)
  • Custom base dimensions


Applications:
  • Multipurpose medium‑sized machine suitable for shredding bulky and varied waste streams
  • Recommended for: large wood pieces, pallets, rags, plastics, leather, tyres, paper, cardboard, packaging, polyethylene strapping, plastic film, PET bottles, metal containers, upholstery, bumpers, trunks, tarpaulins, documentation, plastic scraps, start/end extrusion remnants, etc.


Shredder construction:
  • Heavy‑gauge electrowelded steel frame
  • Bearing housings with sealing system against dust and liquids
  • Interchangeable anti‑wear side plates separating cutting chamber from bearing flanges
  • High‑thickness shafts fitted with 25 special anti‑wear steel cutters and 25 conveyor disks for improved grip on bulky items
  • Tool thickness: 40 mm with staggered cutter tooth arrangement for progressive cutting
  • 2 epicyclic (planetary) reduction gears with axes parallel to cutter axis
  • Drive in oil bath to protect gears and pinions
  • Top‑loading electrowelded sheet metal hopper
  • Base fitted with 3 protective nets and a frontal gate with safety micro‑switch
  • Approx. weight: 5.5 t


Control system:
  • Electrical cabinet compliant with CEE/CE standards with torque limiting device (reverses pusher if overload occurs)
  • SIEMENS S7‑1200 PLC to manage peripheral units
  • SIMATIC SIEMENS touch screen for parameter adjustment
  • Software prepared to control loading system, grinder and extraction/ventilation plant
  • Emergency stop and safety functions for system shutdown
  • Maintenance scheduler (ISVE MAINTENANCE PROGRAM) with reminders on the HMI
  • Production rate varies by material and required particle size (typical 1.5–2.5 t/h)
  • Manufactured to CE standards


Accessories (detailed):
  • ISVE Server Connect: optional internet module for automatic monitoring on ISVE server
  • Grid/screen to determine shredded material size
  • Hydraulic pusher with characteristics:
    • Electrowelded steel profile frame to assist feeding of bulky bodies
    • Fixing plate for machine attachment
    • Manual control selector
    • Protection nets
    • Hydraulic cylinder for pusher actuation
    • Hydraulic unit with gear pump and 2.2 kW motor, thermostated, oil cooling radiator
    • Management and control from shredder electrical panel


Technical specifications:
  • Model: 100-100S
  • Cutting chamber: 1000 × 1000 mm
  • Installed power: 44 kW (22 kW + 22 kW)
  • Drive: gears, oil bath with steel gears and pinions
  • Cutter shafts: 2
  • Hardened cutters: 25 (special anti‑wear steel, tool thickness 40 mm)
  • Conveyor shafts: 2
  • Conveyor disks: 25
  • Average cutter speed: approx. 18 rev/min
  • Production (typical): 1.5–2.5 t/h
  • Weight: approx. 5.5 t
  • Safety devices: emergency stop, hopper closed contact
  • Standards: CE
