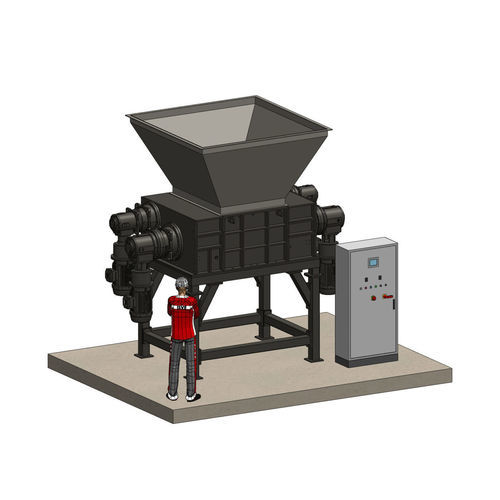

Four shaft shredder 100130S-MAX

industrial wastewith conveyorreinforced

Product overview:
The 100130S-MAX is a heavy-duty 4-shaft industrial shredder with a 1000×1300 mm cutting chamber. It combines two cutter shafts and two conveyor/intake shafts, fitted with conveyor disks and wear-resistant cutters. The machine is driven by four gearmotors totalling 90 kW and is designed for continuous, heavy recycling applications.

Main features:

• Total installed power: 90 kW (30 + 30 + 15 + 15 kW)
• Drive: gear drive with epicyclic reduction gears
• Cutter shafts: 2
• Hardened cutters: 20 units, 50 mm thickness, wear-resistant special steel
• Conveyor/intake shafts: 2
• Conveyor/insertion disks: 20 units (42CrMo steel)
• Average cutter speed: 12–15 rev/min
• Accessories: interchangeable screen descent control; drawer connectable to suction system or conveyor belt; protection nets
• Safety: emergency stop, hopper closed contact, frontal gate with safety micro
• Approx. weight: 12 t
• Standards: CE compliant

Shredder construction:

• Robust support in thick electro-welded sheet steel
• Barrel roller bearing supports with sealing against dust and liquids
• High-resistance, torsion-resistant shafts
• 20 cutters in 50 mm wear-resistant special steel
• 20 insertion/conveyor disks in 42CrMo steel
• 2 epicyclic reduction gears for cutter shafts
• 2 epicyclic reduction gears for intake/conveyor shafts
• Motors for cutter shafts: 2 x 45 kW multi-voltage/multi-frequency, efficiency class IE3
• Motors for conveyor disks: 2 x 22 kW multi-voltage/multi-frequency, efficiency class IE3
• Reinforced electrowelded sheet metal hopper for top loading
• Base with drawer connectable to extraction/conveyor or with protection nets and frontal gate

Control system:

• Electrical cabinet complying with CEE standards with torque limiter to reverse rotors on overload
• SIEMENS S7-1200 PLC for plant peripherals control
• 6 in. colour touch display for parameter adjustment
• AUTO TUNING ISVE self-adjustment program
• Software prepared to control loading systems, refiner mill and suction systems
• Emergency stop and safety control functions
• ISVE MAINTENANCE PROGRAM for scheduled maintenance signals
• Predisposition for remote assistance and SAFETY SERVER CONNECTION ISVE for real-time supervision
• Execution according to CE standards

Technical specifications:

• Model: 100130S-MAX
• Cutting chamber (W x H): 1000 x 1300 mm
• Total installed power: 90 kW (30 + 30 + 15 + 15 kW)
• Drive type: gear drive with epicyclic reduction gears
• Cutter shafts: 2
• Conveyor/intake shafts: 2
• Hardened cutters: 20 pieces, 50 mm thick, wear-resistant special steel
• Conveyor/insertion disks: 20 pieces, 42CrMo steel
• Average cutter speed: 12–15 rev/min
• Motors: cutters 2 x 45 kW (IE3), conveyors 2 x 22 kW (IE3)
• Approx. weight: 12 tonnes
• Safety devices: emergency stop, hopper closed contact, frontal gate with safety micro
• Optional accessories: interchangeable screen descent control; drawer for suction or conveyor; protection nets
• Control & automation: SIEMENS S7-1200 PLC; 6 in. colour touch panel; AUTO TUNING ISVE; remote assistance predisposition
• Standards: CE compliant
