Four shaft shredder 120-100S
papertirefor PET bottles

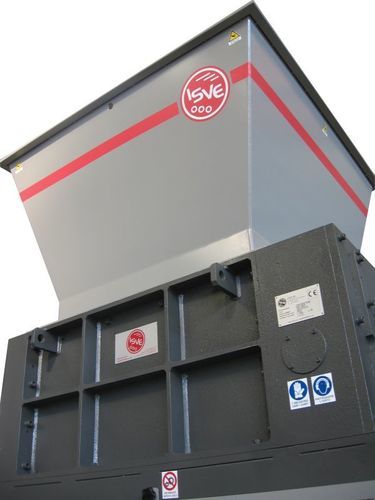

Four shaft shredder - 120-100S - ISVE - paper / tire / for PET bottles
Four shaft shredder - 120-100S - ISVE - paper / tire / for PET bottles
Four shaft shredder - 120-100S - ISVE - paper / tire / for PET bottles - image - 2
Four shaft shredder - 120-100S - ISVE - paper / tire / for PET bottles - image - 3
Four shaft shredder - 120-100S - ISVE - paper / tire / for PET bottles - image - 4
Four shaft shredder - 120-100S - ISVE - paper / tire / for PET bottles - image - 5
Add to favorites
Compare this product

Characteristics

Number of shafts
four shaft
Application
for wood, paper, for cardboard, tire, for PE, plastic, for PET bottles, fabric, pallet
Other characteristics
energy-efficient, heavy-duty, with conveyor
Power

44,000 W

Output

Min.: 1,500 kg/h
(3,306.93 lb/h)

Max.: 3,000 kg/h
(6,613.87 lb/h)

Rotational speed

18 rpm
(113 rad.min-1)

Machine length

3,200 mm
(126 in)

Machine width

2,200 mm
(87 in)

Machine height

2,600 mm
(102 in)

Description

Main features:
  • Cutting chamber: 1000×1200 mm
  • Installed power: 44 kW (2×22 kW) — approx. 60 HP (30+30 HP)
  • Drive: gear transmission in oil bath
  • Cutter shafts: 2
  • Hardened cutters: 30 pieces, tool thickness 40 mm
  • Conveyor shafts: 2 with 30 conveyor disks
  • Average cutter speed: approx. 18 rev/min
  • Production capacity: approx. 1.5–3 t/h (depending on material and target granularity)
  • Safety: emergency stop, hopper closed contact, protection nets and frontal gate with safety micro
  • Compliance: manufactured to EC/CE standards


Accessories on request:
  • Interchangeable hopper
  • Interchangeable screen (to set output size)
  • Base size to order


Recommended applications:
  • Medium‑size multipurpose industrial shredder for processing a wide range of waste materials, including bulky items
  • Can be integrated into continuous production lines
  • Suitable for: large wood pieces, pallets, rags, plastics, leather, tyres, paper, cardboard, packaging, polyethylene strapping, plastic film, PET bottles, containers, upholstery, bumpers, small trunks, tarpaulins, and similar materials


Shredder construction:
  • Thick electrowelded steel sheet frame
  • Bearing housings with sealing against dust and liquids
  • Replaceable anti‑wear side plates separating cutting chamber from bearing flanges
  • High‑section shafts equipped with 30 special anti‑wear steel cutters and 30 conveyor disks to improve grip on bulky objects
  • Tool thickness: 40 mm; staggered cutter tooth arrangement for progressive cut
  • 2 epicyclic reduction gears with axes parallel to cutter shafts
  • 2 multi‑voltage, multi‑frequency 22 kW motors with PREMIUM efficiency class (IE3)
  • Drive system in oil bath with steel gears and pinions
  • Electrowelded top‑loading hopper
  • Machine weight: approx. 6 t


Control system:
  • Electric switchboard to CEE standards with torque limiter that reverses pusher direction on overload
  • SIEMENS S7‑1200 PLC managing peripheral units
  • SIMATIC SIEMENS touch screen for parameter settings
  • Software prepared to control loading system, grinder and suction plant
  • Emergency stop and safety functions
  • ISVE MAINTENANCE PROGRAM: maintenance scheduling and alerts
  • Production varies with material type and required output size (approx. 1.5–3 t/h)


Accessories (detailed):
  • ISVE Server Connect: optional internet module for automatic remote monitoring on ISVE server
  • Grid screens to determine output material size
  • Hydraulic pusher:
    • Electrowelded steel profile structure to facilitate grip of bulky items
    • Fixing plate to machine body and manual control selector
    • Protection nets and hydraulic cylinder for pusher drive
    • Hydraulic unit with gear pump and 2.2 kW motor, thermostated with oil cooler
    • Management and control via shredder electrical panel


Technical specifications:
  • Model: 120-100S
  • Cutting chamber (stated): 1000×1200 mm (also indicated 1200×1000 mm)
  • Installed power: 44 kW (2×22 kW) — approx. 60 HP (30+30 HP)
  • Drive: gears in oil bath
  • Cutter shafts: 2; hardened cutters: 30 pieces (40 mm)
  • Conveyor shafts: 2; conveyor disks: 30
  • Average cutter speed: approx. 18 rev/min
  • Production capacity: approx. 1.5–3 t/h (material dependent)
  • Weight: approx. 6 t
  • Control: SIEMENS S7‑1200 PLC; SIMATIC touch panel; ISVE Maintenance Program
  • Optional: interchangeable hopper, interchangeable screen, custom base
  • Compliance: EC/CE standards
