Water pump Dostec 40electricdiaphragmstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- electric
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- chemical
- Applications
- metering, injection, high-precision
- Material
- PTFE
- Voltage
- 400 V, 230 V, 110 V
- Other characteristics
- adjustable, flow
- Flow
Max.: 600 l/h
(158.50323 us gal/h)Min.: 2.5 l/h
(0.66043 us gal/h)- Pressure
Max.: 20 bar
(290.075 psi)Min.: 4 bar
(58.015 psi)- Power
0.37 kW
(0.5 hp)- Height
370 mm
(14.57 in)- Weight
10 kg
(22.05 lb)
Description

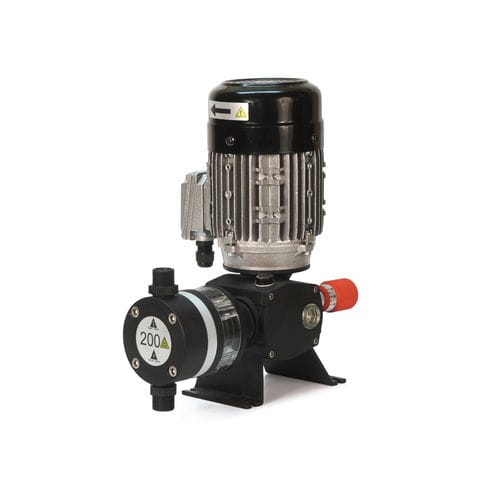

DOSTEC 40 dosing pumps are heavy duty, high precision, piston or diaphragm pumps for dosing liquid products.
This series allows many injection possibilities depending on the head being chosen. The available heads are from 2,5 to 600 l/h for the piston series, and from 5 to 300 l/h for the diaphragm series.
DOSTEC 40 dosing pumps are manufactured with materials that can resist most chemicals products, even acids. They are designed for all sorts of processes where it is necessary to dose a product into a hydraulic network, such as: food, textile, chemical industry, water treatments, etc.
Dosing flow of each module is adjustable independently with no need to stop the pump from 0% to 100% of its capacity.
Catalogs
DOSTEC40: HIGHLIGHTS
1 Pages
