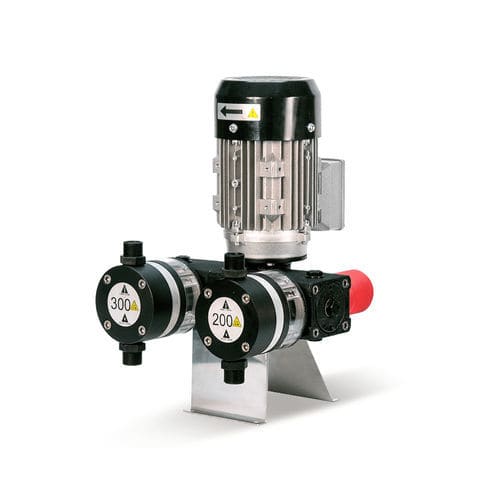

Diaphragm pump Multiferticwaterelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- dosing, service, injection
- Other characteristics
- adjustable, flow
- Flow
Max.: 360 l/h
(95.10194 us gal/h)Min.: 18 l/h
(4.7551 us gal/h)- Pressure
Max.: 15 bar
(217.557 psi)Min.: 3 bar
(43.511 psi)- Length
465 mm
(18 in)- Width
200 mm
(7.87 in)- Height
376 mm
(14.8 in)- Weight
12 kg, 14.5 kg, 17 kg, 19.5 kg
(26.46 lb, 31.97 lb, 37.48 lb, 42.99 lb)
Description
MULTIFERTIC dosing pumps are heavy duty, high precission electric piston or diapragm pumps for dosing liquid products
They are made up of one driving module and 1 to 4 injection modules. The available heads are from 25 to 500 l/h for the piston series, and from 18 to 300 l/h for the diafragm series, independently regulated by means of a system of POSITIVE RETURN, exclusive to I.T.C.
MULTIFERTIC dosing pumps are manufactured with materials that can resist the existing agrochemical products, even acids. It is designed for all sorts of processes where it is necessary to dose a product into a hydraulic network, such as: food, textile, chemical industry, water treatments, etc. In case there is any doubt about compatibility of materials with the products to be used please contact with ITC S.L. Technical Service.
Dosing flow of each module is adjustable independently with no need to stop the pump from 0% to 100% of its capacity.
