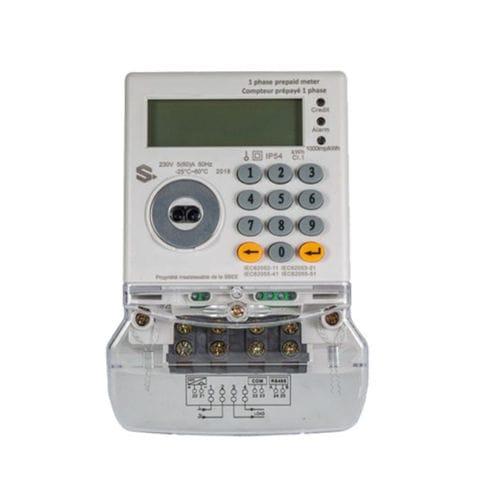

Single-phase electric energy meter EM124041

DIN railRS-485pulse output

The EM124041 is a single-phase two-wire direct connection smart prepayment meter featuring an STS-compliant keypad for secure credit transfer. Operating at 230V with a current range of 10(80)A, this Class 1 accuracy meter provides a pulse output of 1000 imp/kWh. Key features include a built-in relay for load control and both RS485 and IR communication interfaces (IEC1107 protocol) for data management. Designed for direct connection and hanging installation, the EM124041 offers a reliable and convenient solution for prepayment energy metering. Brief introduction The EM124041 is a single-phase two-wire direct connection smart prepayment meter featuring an STS-compliant keypad for secure credit transfer. Operating at 230V with a current range of 10(80)A, this Class 1 accuracy meter provides a pulse output of 1000 imp/kWh. Key features include a built-in relay for load control and both RS485 and IR communication interfaces (IEC1107 protocol) for data management. Designed for direct connection and hanging installation, the EM124041 offers a reliable and convenient solution for prepayment energy metering. Function description STS Prepayment with Keypad Accuracy Class 1 Pulse Output: 1000 imp/kWh Built-in Relay Direct Connection Hanging Installation Technical Parameters Impulse Constant 1000imp/kWh Starting Current 20mA Accuracy Cl.1 LCD LCD6+2=999999.99kW Power Consumption <10VA/2W Operation Temp. -20~55℃ Maximum Humidity 95% Standard IEC62052-11, IEC62053-21, IEC62056-21, IEC62055-41, IEC62055-51 Protection Degree IP54
