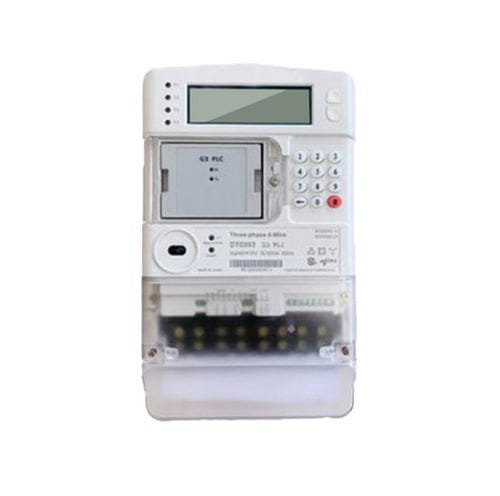

Three-phase electric energy meter EM524052

plug-inRS-485prepaid

EM524052 is a 3P4W multifunctional RF GPRS meter and it is a mobile wireless meter. It has STS certificate and can be connected to any STS managed system. It supports IR, RS485, PLC, GPRS and LoRa Communication. This meter support two way measurement and can be used for energy quality analysis.As a mobile wireless meter, it supports different slots and multi-tariff. It has optional external CT for circuit security and monitoring. It complies with IEC standard. Brief introduction EM524052 is a 3P4W multifunctional RF GPRS meter and it is a mobile wireless meter. It has STS certificate and can be connected to any STS managed system. It supports IR, RS485, PLC, GPRS and LoRa Communication. This meter support two way measurement and can be used for energy quality analysis.As a mobile wireless meter, it supports different slots and multi-tariff. It has optional external CT for circuit security and monitoring. It complies with IEC standard. Function description Measurement of forward and reverse power, total active power, residual power, and power consumption Accuracy Class: Active-1.0, Reactive- 2.0 Multifunctional anti-tamper by cover open detection or against strong magnetic field tamper Buzzer alarm when voltage dip and high temperature Complies with international standard IEC62052-11 IEC62053-21 IEC62056-46 IEC62056-61 IEC62053-61 Specifications Ref. current Direct type 10(100)A CT type 1.5(6)A Ref. frequency 50Hz Accuracy class Active Cl.1,reactive Cl.2 Starting current Cl.1 :40mA Cl.2 :50mA Standard compliant IEC62052-11,IEC62053-21,IEC62056-46, IEC62056-61,IEC62053-61 Communication RS485, IR(always present) Plug-in module: PLC (G3) GPRS LoRa
