Leakage current sensor MD0630STA-PM

fluxgatePCBplug-in

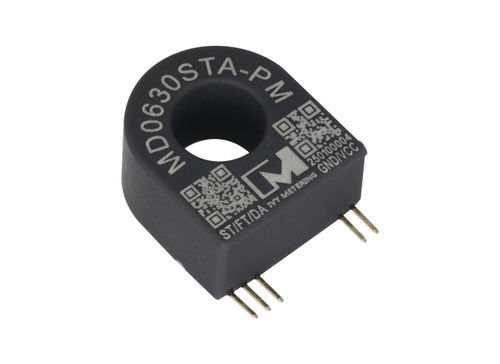

MD0630STA-PM Introduction The MD0630STA-PM AC DC leakage current sensor (compatible with Type A and Type B) features high sensitivity, accurate measurement, and a compact & integrated design. It outputs an alarm signal when it detects a DC leakage current of 3-6mA or an AC leakage current of 15-30mA. It also has a self-test function. Its outstanding features are its ultra-small size and ultra-low price (Type B Quality, Type A Price). This series of products has important applications in various fields, including industrial equipment, medical instruments, new energy, and smart cities. It is particularly suitable for charging electric vehicles, electric motorcycles, and electric bicycles in various public places. It is simple to use and install. Product Feature - Wide voltage input: DC 4.85-5.5V - Measurement current range: DC 2-15mA, AC 3-100mA - Alarm current range: DC 3-6mA, AC 15-30mA - Alarm output: Open collector output - Self-test function: Use the test pin to determine whether the sensor is functioning properly - Operating temperature: -25°C to +80°C Type A B Leakage Current Sensors for EV Charging Fully Compliant with DC and AC Leakage Current Detection Standards This device can detect 6mA DC and 20/30mA AC leakage current, fully compliant with IEC 62752, IEC62955, and UL2231 standards. These current sensors are commonly used for electrical safety in charging stations/charging connectors. They are designed to accurately measure the current flowing through a conductor and provide a proportional output signal to relevant monitoring or control equipment. Type B current transformers are typically used in applications where the primary current is relatively constant, such as in electric vehicle charging stations or charging connectors, where the current is typically controlled to a set level during charging. Type B current transformers offer high accuracy over a wide frequency range, making them suitable for a variety of applications. Any detected leakage should be addressed promptly to prevent equipment damage or potential safety hazards. Technical Specifications: - Model: MD0630STA-PM - Voltage input: DC 4.85-5.5V - Measurement current range: DC 2-15mA, AC 3-100mA - Alarm current range: DC 3-6mA, AC 15-30mA - Alarm output: Open collector output - Self-test function: Yes (via test pin) - Operating temperature: -25°C to +80°C - Compliance: IEC 62752, IEC62955, UL2231 - Applications: EV charging, industrial equipment, medical instruments, new energy, smart cities
