polyamide cable gland / IP66 / IP68 / IP69

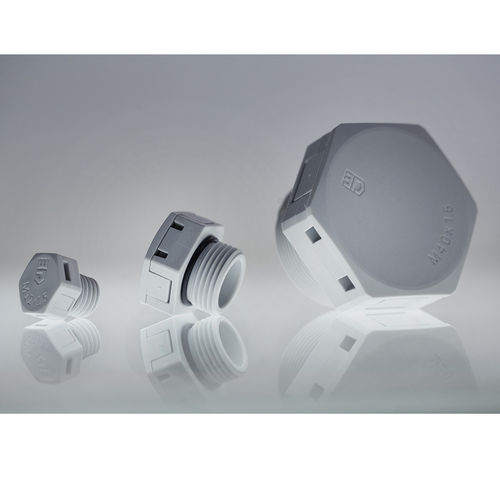

Venting element JDAExxPAzzzz

Add to MyDirectIndustry favorites
Compare this product
polyamide cable gland / IP66 / IP68 / IP69 polyamide cable gland / IP66 / IP68 / IP69 - Venting element JDAExxPAzzzz
{{requestButtons}}

Characteristics

  • Material:

    polyamide

  • Protection level:

    IP68, IP66, IP69

  • Other characteristics:

    ventilation

  • Operating temperature:

    Max.: 100 °C (212 °F)

    Min.: -40 °C (-40 °F)

  • Thread diameter:

    Max.: 40 mm (1.57 in)

    Min.: 12 mm (0.47 in)

Description

Waterproof enclosures with protection grades IP67 or IP68 for outdoor use are not automatically sealed against vapour and humid air. To avoid negative pressure, high humidity and condensation inside the enclosure a continuous Ventilation and pressure equilibrium is necessary. This function can be achieved by using a venting element made by Jacob.
Features:
- Continuous ventilation and adaptaion on the inner pressure
- Hydrophobic and oleophobic PES- membrane
- Polyamide material fulfills UL 94 V-0 and EN 45545-2, R22: HL3 / R23: HL3
- Typical air flow > 400 ml/min/cm² at Delta-p = 0,07 bar
- Water entry pressure >= 0,83 bar (dynamic WEP, 30 seconds)
- Temperature range -40°C / +100°C
- Protection grade IP66 / IP68 - 0,6 bar (60 min.) / IP69
