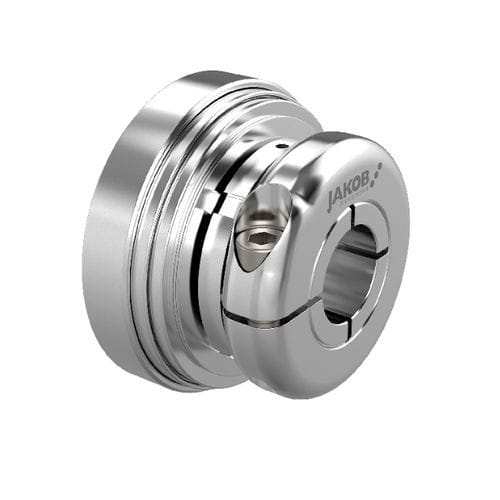

Torque shaft coupling SKVA-N
Add to favorites
Compare this product
Characteristics
- Other characteristics
- torque
- Torque
Min.: 5 Nm
(3.687811 ft.lb)Max.: 900 Nm
(663.805934 ft.lb)
Description
- SKVA-N series with keyway connection
- SKVA-K series with clamping ring hub
- completely stainless steel
- Torque-limiting – release torque adjustable
- Angle-synchronous re-engagement after 360°
- for mounting e.g. toothed belt pulleys, gear wheels, sprockets or flanges
- with deep groove ball bearing – for high bearing forces – robust
- backlash free
- Temperature range: -50°C to +150°C
- Torque range: 5 – 900 Nm
- Shaft diameter: SKVA-N: 8 – 58 mm / SKVA-K 10 – 65 mm
- Optional additional functions, e.g. other latching angles or release mechanism
Catalogs
Catalogue Safety Couplings
24 Pages
