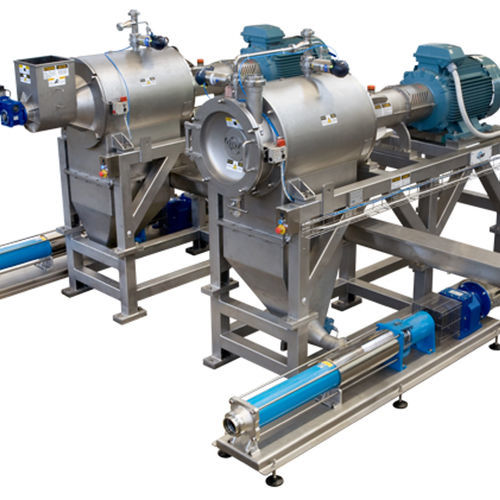

Fruit juice extractor FTE series

multi-fruitcold

Overview
The FTE series juice extractors are industrial separators designed to process a wide range of fruits and vegetables to produce juice and purée. The machines perform mechanical solid/liquid separation with effective refining and are built for configurable production lines with a securely mounted motor for low-vibration operation.

FTE-CE Cold Extractor
The FTE-CE cold-extraction variant minimizes damage to stems and seeds to avoid release of bitter compounds, making it suitable for temperature-sensitive purée and juice applications.

Key features

• Compact footprint for space-constrained production areas
• Optional electrical control panel
• Rotation speed capability up to 2,000 rpm
• Gentle product handling and configurable settings for different raw materials
• Securely mounted motor for virtually vibration-free operation
• Motor options from 55 kW (FTE50) to 110 kW (FTE100) without frame modification
• Flow rate at full speed can reach up to 100 MT/hour depending on product, temperature and screen size

Versions

• FTE 50 and FTE 100
• FTE-CE 50 and FTE-CE 100

Service
Lifecycle support including preventive maintenance, spare parts supply and service agreements to maximize uptime and optimize performance.

Downloads
Juice Extractor FTE series - EN - 0.6MB
Juice Extractor FTE series - ES - 0.6MB
Juice Extractor FTE series - FR - 0.6MB
Juice Extractor FTE series - PT - 0.6MB
Juice Extractor FTE series - IT - 0.6MB
Juice Extractor FTE series - RU - 0.7MB
FTE-CE Cold Extractor - EN - 0.7MB

Technical specifications

• Series: FTE (FTE and FTE-CE variants)
• Motor power range: 55 kW (FTE50) to 110 kW (FTE100)
• Maximum rotation speed: up to 2,000 rpm
• Throughput (full speed): up to ~100 MT/hour (dependent on product, temperature and screen size)
• Extraction type: mechanical solid/liquid separation; cold-extraction option to protect stems/seeds
• Optional electrical panel available
• Adjustable for fruits, vegetables, tomato products, pastes and purées
