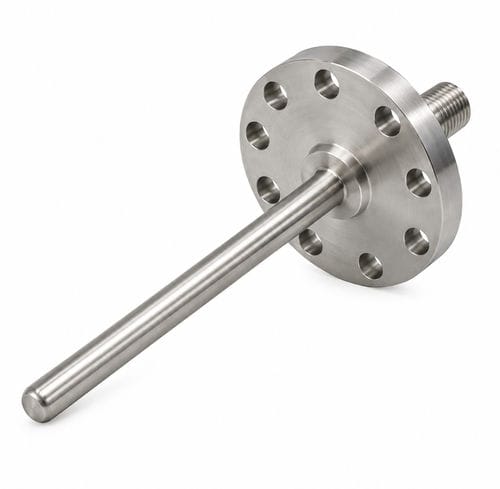

Flange-mounted thermowell TMZC12BL600

stainless steelfor thermocouplesfor temperature sensors

Overview
Flanged industrial thermowell manufactured in AISI 304 stainless steel to protect temperature sensors (PT100, thermocouples) in process environments. Model TMZC12BL600 with sheath outer diameter Ø21.3 mm and immersion length 600 mm; closed immersion end (sealed tip) for mechanical and process-media protection.

Main features

• Type: flanged thermowell
• Flange: DN40
• Material: AISI 304 stainless steel
• Sheath outer diameter: Ø21.3 mm
• Immersion length: 600 mm
• Immersion end: closed (sealed tip)
• Compatibility: PT100 sensors, thermocouples and other dimensionally compatible probes
• Weight: 3 kg
• Packaging dimensions: 60 × 40 × 30 cm
• Internal code / product reference: TMZC12BL600

Industrial applications

• Storage tanks and vessels
• Process pipelines
• Thermal installations
• Industrial machinery
• Production equipment
• Temperature control and monitoring systems

Advantages

• Protects sensor from direct contact with process medium
• Enables maintenance and extraction of the probe without disassembling the process connection
• Secure mounting via DN40 flange
• Durable metallic sheath Ø21.3 mm and 600 mm immersion length
• Closed tip for enhanced mechanical and medium protection

Documentation / Technical specifications
Technical datasheet available for model TMZC12BL600 (product technical documentation).
