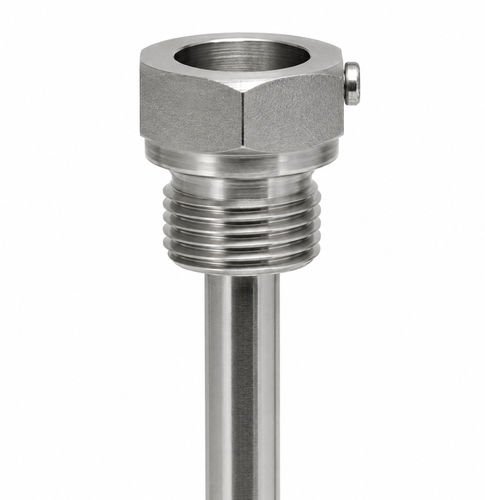

Lockable thermowell TMZ10x150

threadedstainless steelfor thermocouples

Description
Industrial thermowell manufactured from AISI 316 stainless steel, designed to house and protect industrial temperature sensors. It separates the sensor from direct contact with the process and facilitates mechanical installation and maintenance. The sensor is secured using a locking bolt that holds the probe inside the thermowell simply and reliably.

Features

• Type: Industrial thermowell
• Material: AISI 316 stainless steel
• Outer diameter: Ø10 mm
• Length: 150 mm
• Process connection: 1/2"G thread
• Sensor retention: Locking bolt
• Use: Protection and installation of temperature sensors (thermocouples and RTD probes compatible with the inner diameter)

Applications

• Industrial temperature probes
• PT100 and other RTD sensors
• Thermocouples
• Industrial machinery and equipment
• Temperature measurement and control installations
• Processes requiring a 1/2"G threaded connection

Construction and retention
Manufactured in AISI 316 stainless steel to perform in industrial environments. The locking bolt system keeps the sensor positioned inside the thermowell without requiring the probe itself to be threaded.

Technical specifications

• Material: AISI 316 (stainless steel)
• Outer diameter: 10 mm
• Effective length: 150 mm
• Process connection: 1/2"G thread
• Retention: Locking bolt for probe
• Weight: 2 kg
• Additional dimensions (as per datasheet): 600 × 20 × 20 cm
