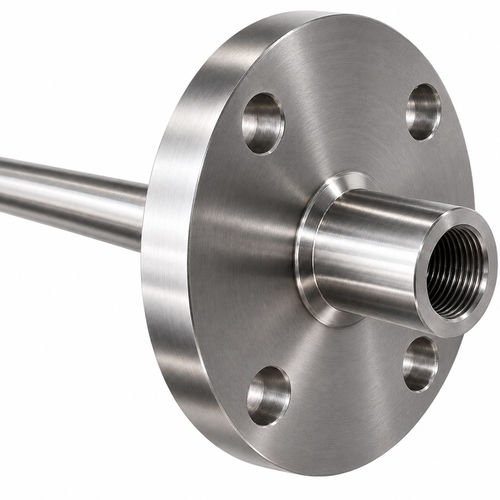

Flange-mounted thermowell TMZC12BL200

stainless steelfor temperature sensorsfor thermocouples

Description
Thermowell with flange DIN 2576 DN25 designed to protect temperature probes in industrial processes. Flange made of AISI 304L stainless steel and sheath made of AISI 316 stainless steel. Sheath dimensions Ø12×200 mm and probe connection 1/2"G for mounting PT100, thermocouples and other industrial temperature sensors. Enables secure, removable installation that facilitates maintenance and replacement without direct contact between the sensor and the process.

Key features

• Product: Industrial thermowell with flange
• Flange standard: DIN 2576
• Nominal diameter: DN25
• Flange material: AISI 304L
• Sheath material: AISI 316
• Sheath dimensions: Ø12 × 200 mm
• Probe connection: 1/2"G
• Compatible sensors: PT100, thermocouples and other industrial probes
• Typical use: Temperature measurement in pipes, tanks and industrial equipment

Applications

• Industrial tanks and vessels
• Process piping
• Production equipment
• Fluid treatment installations
• Industrial machinery
• Temperature control and monitoring systems

Advantages

• Protects the probe from the process medium
• Facilitates probe maintenance and replacement
• Allows use of PT100 and thermocouple probes with compatible connection
• Flanged connection simplifies installation on tanks and equipment where threaded fittings are not appropriate
• Stainless steel construction (AISI 304L / AISI 316) for corrosion resistance in industrial environments

Technical specifications

• SKU: TMZC12BL200
• Commercial model: Thermowell with flange
• Flange standard: DIN 2576
• Flange nominal diameter: DN25
• Flange material: AISI 304L (stainless steel)
• Sheath material: AISI 316 (stainless steel)
• Sheath diameter: Ø12 mm
• Sheath length: 200 mm
• Probe connection: 1/2"G
• Compatibility: PT100, thermocouples and other probes with 1/2"G connection
• Weight: 3 kg
• Package dimensions (reported): 40 × 40 × 30 cm
