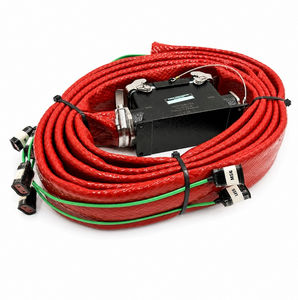

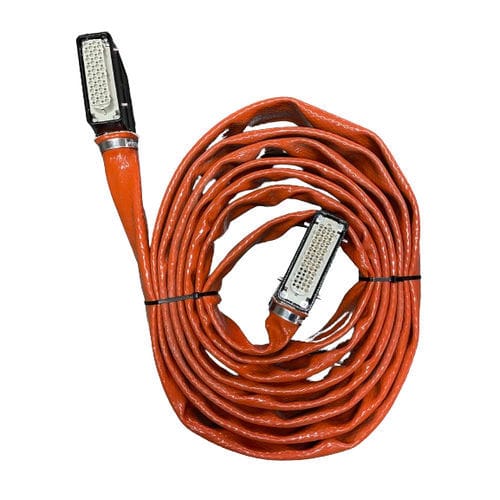

Compensation thermocouple wire M6H-24P-L7000

Description
6-point multipoint cable for type K thermocouples – 7 m. Allows grouping and extending multiple temperature signals within an industrial installation. The cable is 7,000 mm long and includes a 24-pin fixed-face connector that routes the connections from the different points to a reading or control device via a single cable bundle.

Features of the type K multipoint cable

• Number of points: 6 measurement points
• Thermocouple type: Type K
• Length: 7,000 mm
• Connector: 24-pin fixed-face connector
• Product type: Multipoint compensation cable
• Function: Connection and extension of thermocouple signals
• Recommended use: Industrial installations and machinery

Connection for type K thermocouples
The assembly allows signals from multiple type K thermocouples to be transmitted to a reading, control, or recording device. Each point keeps an independent connection within the assembly. For correct connection, conductors, terminals and reading equipment must be compatible with type K thermocouples and respect the polarity of each point.

Other names for this product

• Multipair hose for type K thermocouples
• Type K compensation hose
• Multipair cable for type K thermocouples
• Multipair compensation cable
• Multipoint thermocouple hose
• Multichannel thermocouple cable

Advantages of the 7-m length

• Covers distances up to 7 m between measurement points and equipment
• Groups connections from 6 measurement points
• Reduces the number of separate cables
• Facilitates connection to control equipment
• Keeps wiring organized
• Includes fixed 24-pin connector

Industrial applications
Furnaces and thermal processes; industrial machinery; production lines; equipment with multiple temperature points; test and control systems; temperature recording and reading equipment; industrial maintenance tasks. Resistance to temperature, humidity, chemicals or mechanical stress depends on the selected materials and protections; verify operating conditions before selecting the product.

Additional information (table)
Weight: 8 kg
Dimensions: 50 × 50 × 30 cm

Data required to verify compatibility

• Exact type of K thermocouple
• Number and distribution of measurement points
• Required length and installation route
• 24-pin pinout distribution
• Connector type and model
• Operating temperature and environmental conditions
• Reading or control equipment and its connection type

Manufacture
Made in Spain.

Characteristics / technical specifications

• Number of points: 6
• Thermocouple type: K
• Nominal length: 7,000 mm
• Connector: 24 pins, fixed-face
• Type: Multipoint compensation cable
• Function: Grouping, connecting and extending thermocouple signals
• Use: Industrial installations and machinery
• Weight: 8 kg
• Package dimensions: 50 × 50 × 30 cm
• Code / internal reference: M6H-24P-L7000
• Origin: Made in Spain
