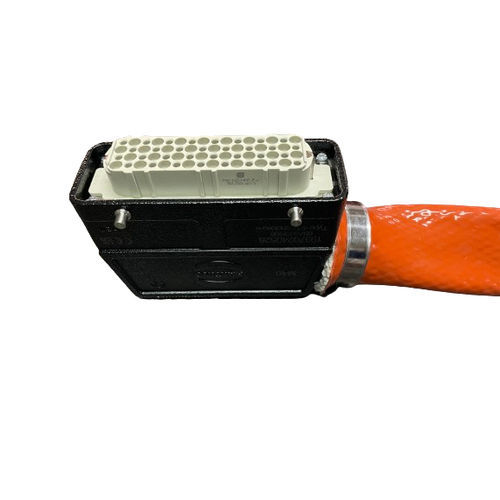

Thermocouple kit M27H-64P-L7000

Summary
The multipoint thermocouple harness for steelmaking consolidates 27 temperature measurement connections into a single wiring assembly. Standard length 7 m with a connector at each end. Enables connection of the measurement unit to reading or control equipment while avoiding multiple individual terminations. Manufactured to order for thermocouple types K, J, N and other calibrations; conductors and terminations selected according to the requested thermocouple type.

Key features

• Number of points: 27 measurement points
• Length: 7,000 mm (7 m)
• Connectors: one connector at each end (grouping connector)
• Thermocouple types: K, J, N and others on request
• Function: connection and extension of thermocouple signals, grouping and organization of cabling
• Main use: steelmaking installations and industrial temperature processes
• Origin: Made in Spain
• Availability: made to order

Advantages

• Reduces the number of individual terminations in the installation
• Makes connection/disconnection and replacement easier during maintenance
• Groups 27 signals into a single harness, improving organization and identification
• Can reduce assembly time and simplify repairs

Applications

• Industrial furnaces
• Rolling lines
• Heat treatment processes
• Foundry and casting equipment
• Steel production machinery
• Thermal testing and control systems
• Temperature recording, reading or control equipment

Options and customization (examples available in made-to-order manufacture)

• Sensor type: Thermocouple K, J, T, N, S, R, PT100, PT1000 or other
• Sheath material: AISI 304, AISI 316, AISI 310, Inconel 600, Ceramic, Silicon carbide or others
• Connection: no connection, 1/8", 1/4", 3/8", 1/2", 3/4", 1", flange, compression fitting or others
• Cable: no cable, silicone, PFA/Teflon, fiberglass, stainless braid or others
• Termination: head, mini connector, standard connector, free leads or other termination
• ATEX options and calibration services (in-house check or ENAC-managed calibration) on request

Other names it may be known by

• Multipair hose for thermocouples
• Compensation multipair hose
• Multipoint temperature cable
• Multipair cable for thermocouples
• Multichannel cable for thermocouples
• Multipoint thermocouple hose
• Thermocouple harness for steelmaking

Data required to check compatibility before ordering

• Required thermocouple type (K, J, N or other)
• Number of measurement points (confirmed: 27)
• Model and pin count of each connector
• Distribution/assignment of connections in the connectors
• Required length and allowance to avoid strain
• Ambient temperature and temperature along the harness route
• Presence of humidity, dust or mechanical stresses
• Characteristics of the reading or control equipment (polarity, connector type, pin layout)

Technical data / specifications

• Weight: 8 kg
• Packaging dimensions (approx.): 50 × 50 × 30 cm
• Number of points: 27
• Nominal length: 7,000 mm
• Connectors: one connector at each end (grouped/fixed-face configuration)
• Available thermocouple types: K, J, N (and other calibrations on request)
• Product type: multipoint thermocouple harness (signal grouping and extension)
• Internal code shown on datasheet: M27H-64P-L7000
• Manufacture: made to order
