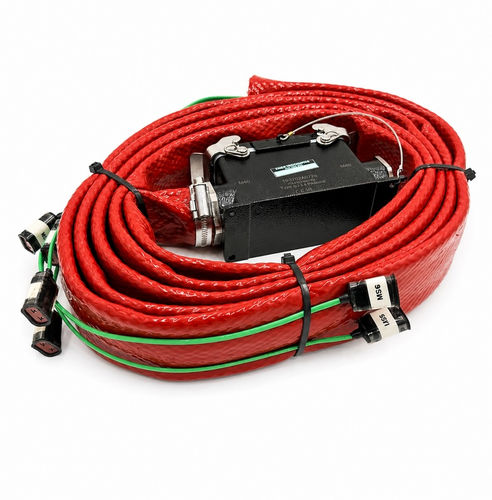

Wiring loom thermocouple wire M6H

compensation

Description
Multipoint cable/harness for thermocouples with 6 measurement points. Length: 4 m. Fixed-face 24-pin connector. Designed for connection and extension of thermocouple signals in industrial installations; consolidates the connections required for a 6-point multipoint measurement system into a single unit to simplify installation and avoid the use of multiple individual cables.

Multipoint harness features

• Number of points: 6 measurement points
• Length: 4,000 mm
• Connector: 24-pin fixed-face connector
• Product type: Multipoint/multi-pair harness for thermocouples
• Use: Connection and extension of temperature signals
• Application: Industrial installations and machinery

Other names used

• Multicouple harness for thermocouples
• Multipair compensation harness
• Multipair thermocouple cable
• Multipoint compensation cable
• Multipoint thermocouple harness

Industrial applications

• Furnaces and thermal processes
• Industrial machinery
• Equipment with multiple measurement points
• Production plants
• Temperature control and recording systems
• Industrial maintenance operations

Information to confirm before ordering

• Required thermocouple type
• Number of measurement points required
• Required length
• Connector type
• Operating temperature
• Site conditions (humidity, chemical exposure, etc.)
• Reading or control equipment to be connected

Additional information (table)
Weight: 8 kg
Dimensions: 50 × 50 × 30 cm

Technical specifications

• Code (SKU): M6H-24P-L4000
• Manufacturer: Jemar Termometria SL
• Country of manufacture: Spain
• Status: Made to order / MADE TO ORDER
• Grouping connector: 24P (reference to the 24-pin connector)
• Physical number of points on the harness: 6
• Displayed standard length: 4 m
• Product type: Multipoint harness for thermocouples, intended for industrial installations
