Thermocouple hose ALTJ-10CL12-000

Summary
Multichannel hose for type J thermocouples with 15 channels, prepared for connection of multiple temperature points in an industrial autoclave.

Description

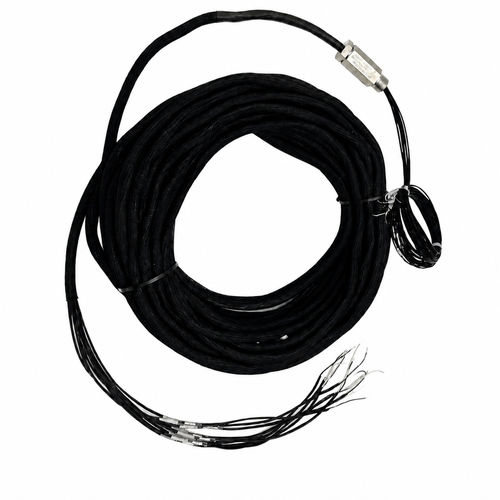

The assembly includes a 3/4" fitting, 1 meter of internal cable and 12 meters of external PVC-sheathed cable. Each channel carries a type J temperature signal to the control or recording equipment. The hose groups the wiring and facilitates connection of the different measurement points in industrial installations.

Multichannel connection for autoclaves
Allows gathering 15 type J channels into a single assembly; its 3/4" fitting eases mounting to a compatible autoclave connection. Verify thread type and dimensions before installation.

Key features

• Hose for type J thermocouples.
• 15 temperature channels.
• 3/4" connection fitting.
• 1 m internal cable length.
• 12 m external cable with PVC jacket.
• Group wiring for multiple measurement points.
• Designed for industrial autoclave connections.

Inner section and external cable
The hose has a 1 m inner section and a 12 m external section with PVC jacket. This arrangement separates the portion inside the equipment from the external wiring; the external PVC cable must be used within suitable temperature conditions.

Typical uses

• Measuring different zones inside an autoclave.
• Temperature control of parts and loads.
• Monitoring of molds and tooling.
• Recording heating and cooling cycles.
• Connection to temperature control equipment.
• Replacement of existing multichannel hoses.

Checks before purchase
Verify the following points before purchasing:

• Compatibility of the sensor and reading equipment with type J thermocouples.
• Need for 15 channels.
• Thread type and size of the 3/4" fitting.
• Length of the inner section (1 m) and external cable (12 m).
• Temperature conditions inside and outside the autoclave.
• Type of connection to the control equipment.

Characteristics / technical specifications

• Code (SKU): ALTJ-10CL12-000
• Commercial name: Multichannel hose for type J thermocouples
• Associated brand: Jemar Termometría
• Manufacture: Manufactured in Spain
• Sensor type: Type J thermocouple
• Number of channels: 15
• Connection fitting: 3/4"
• Inner section length: 1 m
• External cable length: 12 m (PVC jacket)
• Weight: 5 kg
• Dimensions: 50 × 50 × 30 cm
• Application: industrial autoclaves
• Availability: ON REQUEST
