Insulating sleeve ALTJ-9C-L15-00

thermal protectiontubularfor thermocouples

Description

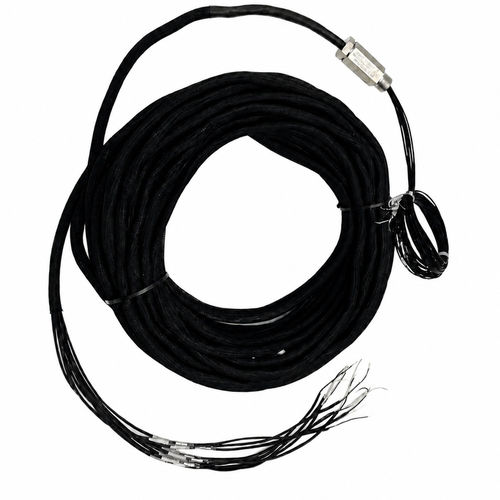

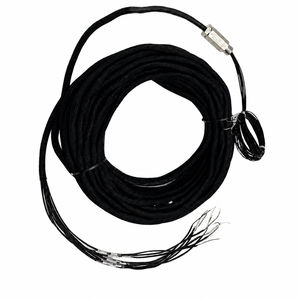

Multichannel hose for Type T thermocouples with 9 channels, designed to connect multiple temperature points inside an industrial autoclave. Supplied with a 3/4" gland, a 2.5 m inner section with fiberglass‑insulated cable and a 15 m outer section with PVC‑sheathed cable. Each channel transmits a Type T thermocouple signal to control or recording equipment, keeping wiring grouped and simplifying identification of measurement points.

Application
Designed for industrial autoclaves requiring multiple Type T thermocouples integrated into a single hose for multipoint temperature measurement (area monitoring, parts, molds or loads).

Main features

• Hose for Type T thermocouples.
• 9 separate temperature channels.
• 3/4" connection gland.
• 2.5 m inner run with fiberglass‑insulated cable.
• 15 m outer run with PVC‑sheathed cable.
• Indicated temperature up to 260 °C (check section-specific specifications).
• Suitable for use in industrial autoclaves.

Uses

• Measurement of different zones inside an autoclave.
• Temperature control of parts and loads.
• Monitoring of molds and tooling.
• Recording heating and cooling cycles.
• Connection to temperature control and data acquisition equipment.
• Replacement of an existing multichannel hose.

What to check before buying

• Compatibility of sensors and reading equipment with Type T thermocouples.
• Actual need for 9 channels.
• Thread size and type of the autoclave 3/4" gland.
• Required inner length (2.5 m) and outer length (15 m) for your installation.
• Maximum temperature supported by each section (verify PVC cable datasheet for outer run).
• Type of electrical/connector interface with the control equipment.

Frequently asked questions

• How many channels does this hose have? It provides 9 channels for Type T thermocouples (up to nine temperature signals).
• What gland is supplied? A 3/4" gland is included; verify the autoclave's thread size and type before installation.
• What are the cable lengths? 2.5 m inner section with fiberglass‑insulated cable and 15 m outer section with PVC‑sheathed cable.
• Does the entire hose support 260 °C? Check the technical datasheet for which section is rated to 260 °C. The PVC outer run has its own thermal limit and should be kept away from the hottest zones unless the datasheet permits.
• Can it be used with Type J or K thermocouples? No. This hose is configured for Type T signals; select a compatible hose for other thermocouple types.

Additional information (table)
Weight: 5 kg
Dimensions: 50 × 50 × 30 cm

Technical specifications

• Designation: Multichannel hose for Type T thermocouples (9 channels).
• Code / SKU: ALTJ-9C-L15-00.
• Manufacture: Made in Spain.
• Channels: 9 independent channels for Type T thermocouples.
• Gland: 3/4" (verify thread type before installation).
• Inner run: 2.5 m with fiberglass‑insulated cable.
• Outer run: 15 m with PVC‑sheathed cable.
• Indicated temperature: up to 260 °C (depending on section and corresponding datasheet).
• Application: industrial autoclaves and multipoint temperature measurement.
• Unit weight: 5 kg.
• Overall dimensions: 50 × 50 × 30 cm.
