Thermocouple hose ALTJ-8C-L15-000

Description

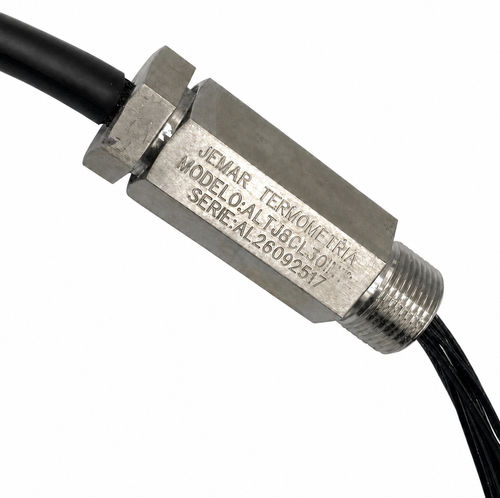

Multichannel thermocouple hose for Type N with 18 channels, designed to connect multiple temperature points in an industrial autoclave. The kit includes a 3/4" fitting, 1 meter of cable for the internal section and 12 meters of cable with PVC jacket for the external section. Each channel transmits a Type N thermocouple signal to the control or recording equipment, grouping wiring to simplify identification of measurement points.

Main features

• Thermocouple hose for Type N sensors.
• 18 independent temperature channels.
• 3/4" fitting for autoclave connection.
• 1 m internal cable section.
• 12 m external cable with PVC jacket.
• Wiring grouped into a single assembly to simplify installation and connection identification.
• Designed specifically for industrial autoclave applications.

Applications

• Measurement of different zones in large-capacity autoclaves.
• Temperature control of parts and loads.
• Monitoring of molds and tooling.
• Recording heating and cooling cycles.
• Control of industrial thermal processes and connection to recording or control equipment.
• Replacement or upgrade of existing multichannel hoses.

Frequently asked questions (summary)

• How many channels? 18 channels for Type N thermocouples.
• Which fitting is included? 3/4" fitting (check autoclave thread type and size before installation).
• Cable length? 1 m for the internal section and 12 m with PVC jacket for the external section.
• Compatible with Type J or K? No, it is configured specifically for Type N thermocouple signals; other types require a compatible hose.

Characteristics / technical specifications

• Sensor type: Type N thermocouple (18 channels).
• Fitting: 3/4".
• Internal section length: 1 m.
• External section length: 12 m (PVC jacket).
• Weight: 5 kg.
• Assembly dimensions: 50 × 50 × 30 cm.
• Application: industrial autoclaves and multipoint measuring equipment.
• Country of manufacture: Spain.
• Internal product code: ALTJ-8C-L15-000.
