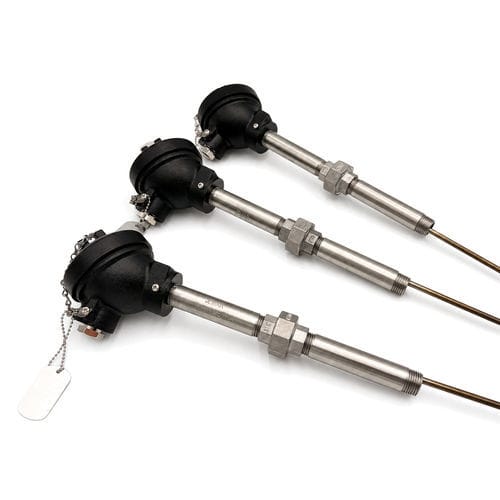

Pt100 temperature sensor RTD3H6L600NPT

RTDPt1000threaded

Description
Industrial PT100 probe, 3-wire, sheath in AISI 316 stainless steel Ø6×600 mm, compact stainless fitting and process connection via two 1/2" NPT threaded nipples. Manufactured by Jemar Termometría. Designed for temperature measurement and control in industrial processes, tanks, pipes and equipment where a reliable probe is required.

Main features

• Sensor: PT100
• Configuration: 3-wire
• Sheath: AISI 316 stainless steel
• Diameter: Ø6 mm
• Length: 600 mm
• Fitting: Compact AISI 316
• Process connection: 2 x 1/2" NPT threaded nipples
• Head: Metal
• Manufacturer: Jemar Termometría
• Application: Industrial temperature measurement

Common applications

• Tanks and vessels
• Industrial piping
• Thermal machinery and equipment
• Industrial processes and temperature control systems
• Sensor replacement and maintenance operations

Additional information
Weight: 3 kg
Dimensions: 80 × 20 × 20 cm

Characteristics / technical specifications

• Code (SKU): RTD3H6L600NPT
• Sensor type: PT100 (RTD)
• Electrical configuration: 3-wire
• Sheath material: AISI 316 stainless steel
• Sheath diameter: 6 mm
• Sheath length: 600 mm
• Fitting: Compact AISI 316
• Process connection: 2 x 1/2" NPT nipples
• Protective head: Metal
• Manufacturer: Jemar Termometría SL
• Commercial status: Made to order
• Typical application: Temperature measurement and control in industrial environments
• Assembly weight: 3 kg
• Package dimensions (indicated): 80 × 20 × 20 cm
