Pt100 temperature sensor 3060331RTDPt1000insertion
Add to favorites
Compare this product
Characteristics
- Technology
- Pt100, RTD, Pt1000
- Mounting
- insertion
- Output
- 3-wire
- Process connection
- G 1/8
- Other characteristics
- stainless steel
- Temperature
Max.: 600 °C
(1,112 °F)Min.: -200 °C
(-328 °F)- Probe diameter
6 mm
(0.2362 in)
Description
Summary

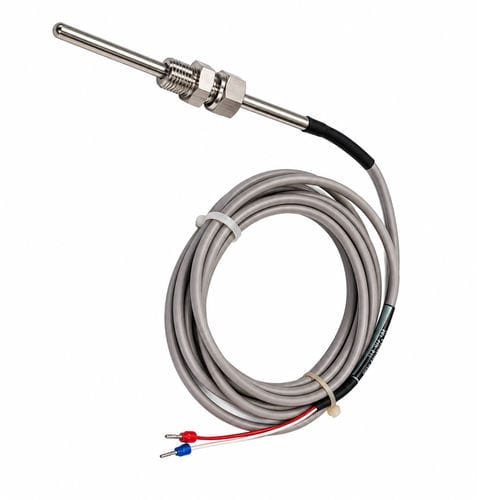

3-wire PT100 temperature probe in AISI 316 stainless steel. Diameter Ø6 mm, overall length 135 mm, insertion length 90 mm, sliding gland 1/4"G and output via 3 m silicone cable.
Features
Technical specifications
3-wire PT100 temperature probe in AISI 316 stainless steel. Diameter Ø6 mm, overall length 135 mm, insertion length 90 mm, sliding gland 1/4"G and output via 3 m silicone cable.
Features
- Sensor: PT100
- Configuration: 3-wire
- Sheath material: AISI 316 (stainless steel)
- Diameter: Ø6 mm
- Overall length: 135 mm
- Insertion length: 90 mm
- Process connection: sliding gland 1/4"G
- Output cable: silicone, length 3 m (3000 mm)
Technical specifications
- Sensor: PT100
- Wires: 3
- Diameter: Ø6 mm
- Length: 135 mm
- Insertion length: 90 mm
- Sheath material: AISI 316
- Process connection: sliding gland 1/4"G
- Cable: silicone, 3 m
- Internal code / reference: 3060331
