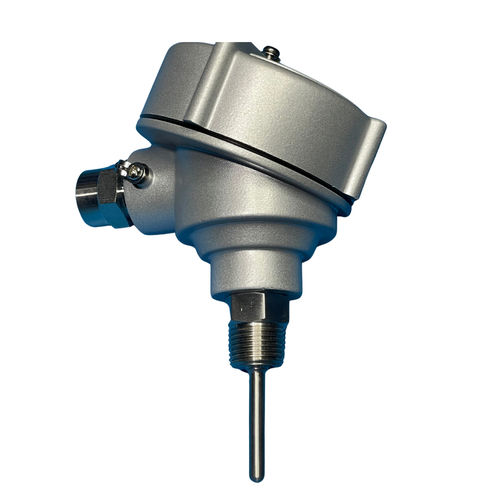

RTD temperature sensor RTD3H06L55CONVR

Pt1004-20 mAbuilt-in transmitter

Product details
The PT100 probe with 4-20 mA converter and ATEX head Ø6 × 55 mm is a solution designed for industrial processes requiring precise and reliable temperature measurement. It integrates a PT100 sensor and a preconfigured 4-20 mA transmitter for the 0 to +50 °C range, providing a robust, interference-resistant signal for integration with industrial control systems. Manufactured in Spain by Jemar Termometria SL.

Key features

• Sensor: PT100 with high accuracy and thermal stability.
• Integrated 4-20 mA converter preconfigured for 0 to +50 °C.
• ATEX head (EEx) suitable for explosive atmospheres.
• Sheath dimensions: Ø6 × 55 mm.
• Process connection: 1/2"G NPT.

Operational benefits

• Stable signal transmission with high immunity to electromagnetic interference.
• Enables long-distance signal runs without loss using the 4-20 mA standard.
• Direct integration into PLC, SCADA and DCS.
• Designed for continuous 24/7 operation.
• Reliable performance in ATEX-classified hazardous areas.

Applications

• Chemical and petrochemical plants with ATEX zones.
• Process lines requiring advanced temperature control.
• Boilers, furnaces and power generation equipment.
• Industrial HVAC systems and process piping.

Additional information (table)
Weight: 1 kg
Dimensions: 30 × 30 × 30 cm

Related keywords
PT100 probe converter, ATEX PT100 sensor, 4-20 mA PT100 transmitter, ATEX temperature probe, PT100 sensor with ATEX head, 1/2 NPT industrial PT100 probe

Technical characteristics / specifications

• Sensor type: PT100 (RTD).
• Integrated transmitter: 4-20 mA, preconfigured 0 to +50 °C.
• Head: ATEX (EEx) compatible with classified areas.
• Sheath dimensions: Ø6 × 55 mm.
• Process connection: 1/2"G NPT.
• High immunity to electromagnetic interference.
• Compatibility: integration with PLC/SCADA/DCS.
• Recommended use: chemical, petrochemical, pharmaceutical, food and industrial temperature control.
• Weight: 1 kg.
• Packaging/unit dimensions: 30 × 30 × 30 cm.
• Manufactured in Spain by Jemar Termometria SL.
• Internal code / reference: RTD3H06L55CONVR.
