X-ray fluorescence spectrometer JSX-1000S

X-ray fluorescence spectrometer
X-ray fluorescence spectrometer
X-ray fluorescence spectrometer
Add to favorites
Compare this product


X-ray fluorescence
Other characteristics

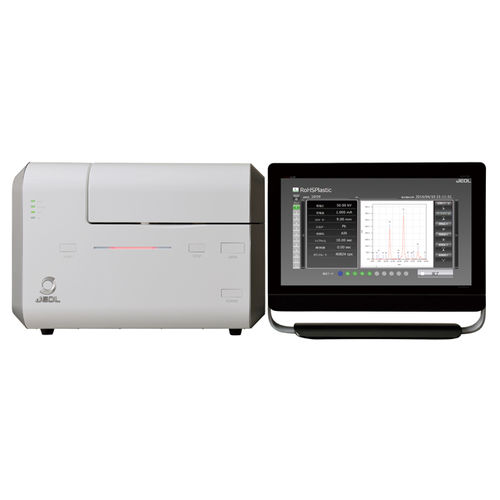

The JSX-1000S is an X-ray fluorescence spectrometer that provides quick, easy elemental analysis using touch screen operation. It is equipped with functions for conventional qualitative and quantitative analysis (FP method, calibration curve method), as well as screening for RoHS elements. With a variety of both hardware and software options available, it is customizable to cover a wide range of analysis needs. Simple Operation Simply set the sample and touch the screen; that’s how easy it is to operate. Another touch of the screen is all it takes to switch between analysis results and spectrum display. It is as easy to operate as a tablet PC or a smart phone. (Operation using a keyboard and a mouse is also supported.) High Sensitivity & High Throughput JEOL’s own SDD (silicon drift detector) and newly-developed optical system, in combination with filters designed to handle the entire energy range, make it possible to achieve high-sensitivity analysis. The sample chamber vacuum unit (option) further increases detection sensitivity for lighter elements. Sensitive analysis throughout the entire energy range High-sensitivity analysis can be performed across the entire energy range using a maximum of 9 types of filters and a sample chamber vacuum unit. Providing Solutions With solution based applications, the desired analysis can be executed automatically according to pre-recorded recipes. Simply select the desired solution icon from the solution application list for automated analysis and display of results. Solution applications offer simplified analysis in a wide range of fields.
