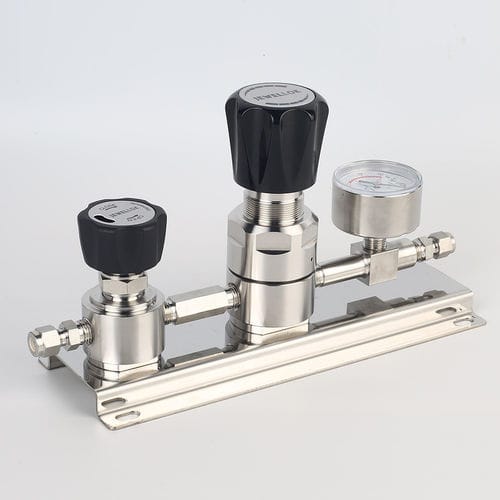

Gas pressure regulator JSR-2TGdiaphragmsingle-stagePEEK
Add to favorites
Compare this product
Characteristics
- Product
- for gas
- Technology
- diaphragm
- Number of stages
- single-stage
- Material
- stainless steel 316L, Hastelloy®, Viton®, PEEK, FKM, 316 stainless steel
- Applications
- high-pressure, laboratory, for pressure calibration, for tests
- Other characteristics
- high-flow, modular, high-purity, with filter, corrosion-resistant
- Pressure
Min.: 0 bar
(0 psi)Max.: 300 bar
(4,351.13 psi)- Orifice diameter
Min.: 1.1 mm
(0.043 in)Max.: 2.4 mm
(0.094 in)- Temperature
Min.: -30 °C
(-22 °F)Max.: 74 °C
(165.2 °F)
Description
Product Features
Typical Applications
Technical Data
Dimensions / Schematic / Flow Chart
Illustrated schematic drawing, flow chart and dimensional drawings are provided with the product images and ordering information.
- Wall-mounting tapping points
- JSR-2EL series single-stage regulator
- Stainless steel 316L body and bonnet for corrosive gases
- Modular design
- Diaphragm type shut-off valves
- Suitable for inlet pressure up to 100 bar
- Tested for use with oxygen
Typical Applications
- Component testing
- Calibration systems
- Laboratory pressure control
- High-pressure sampling systems
- Service & test equipment
Technical Data
- Type: single-stage
- Inlet pressure P1: max. 300 bar
- Outlet pressure P2: 2 / 4 / 10 / 20 / 50 bar
- Materials (see ordering info for body regulator and valves)
- Valve seat (regulator): PCTFE
- Shut-off valve: PEEK
- Diaphragm (regulator): Hastelloy® C276
- Diaphragm (valve): Hastelloy® C276
- O-ring: Viton® (FKM)
- O-ring (option): Kalrez® (FFKM)
- Filter: SS 316L
- Temperature range: -30℃ to +74℃
- Leak rate (to atmosphere): 1×10^-8 mbar l/s He
- Leak rate (via seat): 1×10^-6 mbar l/s He
- Flow capacity (Outlet pressure 2/4/10/20 bar): Cv = 0.28
- Flow capacity (Outlet pressure 35/50 bar): Cv = 0.08
- Weight: 4.5 ~ 6.9 kg
Dimensions / Schematic / Flow Chart
Illustrated schematic drawing, flow chart and dimensional drawings are provided with the product images and ordering information.
