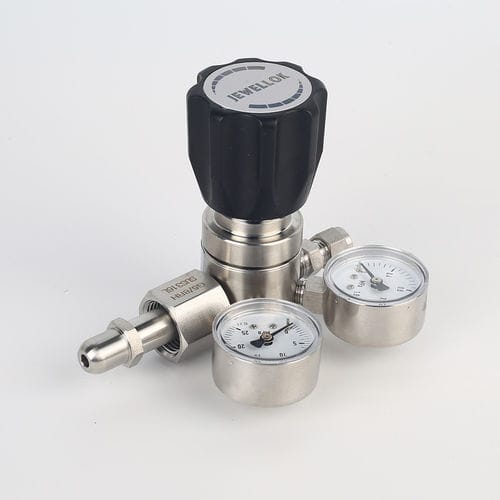

Gas pressure regulator JSR-1E Seriesfor oxygenfor inert gasdiaphragm
Add to favorites
Compare this product
Characteristics
- Product
- for gas, for oxygen, for inert gas
- Technology
- diaphragm
- Number of stages
- single-stage
- Material
- chrome-plated brass, 316 stainless steel
- Applications
- high-purity, laboratory
- Other characteristics
- high-purity, with filter
- Pressure
Min.: 0 bar
(0 psi)Max.: 300 bar
(4,351.13 psi)- Orifice diameter
6.35 mm
(0.25 in)- Temperature
Min.: -30 °C
(-22 °F)Max.: 74 °C
(165.2 °F)
Description
Product Features
Typical Applications
Dimensions (mm)
Dimensions drawing available on original product page (image omitted).
Technical Data
Ordering Information
Specifications
- Cylinder pressure regulator suitable for high-purity, inert, reactive, flammable and oxidizing gases
- Brass chrome-plated body and bonnet for gases up to grade 6.0
- Stainless steel 316L body and bonnet option for corrosive gases
- 6-port flexible configuration
- Stable outlet pressure with manual handwheel adjustment
- Tested for use with oxygen
Typical Applications
- Component testing
- Calibration systems
- Laboratory pressure control
- High-pressure sampling systems
- Service and test equipment
Dimensions (mm)
Dimensions drawing available on original product page (image omitted).
Technical Data
- Type: single-stage
- Inlet pressure P1: max. 300 bar
- Outlet pressure P2: VAC / 2 / 4 / 8 / 10 / 20 bar
- Body/bonnet materials: brass (chrome plated) or SS 316L for corrosive gases
- Valve seat: PCTFE
- Diaphragm: Hastelloy® C276
- O-ring: Viton® (FKM); option: Kalrez® (FFKM)
- Filter: SS 316L
- Inlets and outlets: 1/4" NPT (F)
- Operating temperature: -30°C to +74°C
- Leak rate (to atmosphere): 1×10^-8 mbar l/s He
- Leak rate (via seat): 1×10^-6 mbar l/s He
- Flow capacity: Cv = 0.07
- Weight: 1.30 kg
Ordering Information
- Ordering illustrations and ordering codes are available on the original product page (images omitted)
- Specify cylinder connection standard and thread for mixed gas orders
- Material and connection options selectable at order
Specifications
- Model / Series: JSR-1E Series
- Type: single-stage regulator
- Max. inlet pressure: 300 bar
- Available outlet pressures: VAC, 2, 4, 8, 10, 20 bar
- Body/bonnet materials: brass (chrome plated) or SS 316L
- Valve seat material: PCTFE
- Diaphragm material: Hastelloy® C276
- O-ring material: Viton® (FKM); option: Kalrez® (FFKM)
- Filter: SS 316L
- Connections: 1/4" NPT (F)
- Operating temperature: -30°C to +74°C
- Leak rate (to atmosphere): 1×10^-8 mbar l/s He
- Leak rate (via seat): 1×10^-6 mbar l/s He
- Flow capacity: Cv 0.07
- Weight: 1.30 kg
