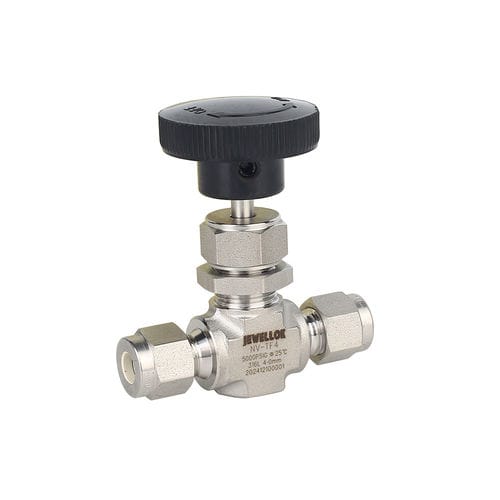

Needle valve JNV Seriesmanualregulatingflow-control
Add to favorites
Compare this product
Characteristics
- Type
- needle
- Operation
- manual
- Function
- regulating, flow-control
- Media
- for natural gas
- Body
- soft-seat, in-line, right-angle, compact, Y
- Material
- stainless steel
- Other characteristics
- high-pressure
- DN
Min.: 0 mm
(0 in)Max.: 10,000 mm
(393.701 in)- Pressure
Min.: 0 bar
(0 psi)Max.: 345 bar
(5,003.8 psi)- Temperature
Min.: -54 °C
(-65 °F)Max.: 232 °C
(450 °F)
Description
Overview
Precision needle valve designed for high-purity natural gas flow control in high-pressure systems. Compact, panel-mountable unit available in straight, angle and cross flow configurations.
Key features
Applications
Technical data
Ordering information
Material, body configuration, inlets/outlets and orifice options are specified in the ordering information.
Precision needle valve designed for high-purity natural gas flow control in high-pressure systems. Compact, panel-mountable unit available in straight, angle and cross flow configurations.
Key features
- Live-loaded packing system
- Vee stem, regulating stem or soft-seat stem optional
- Compact design
- Panel mounting
- Straight, angle and cross flow patterns
- Working pressure up to 5000 psig (345 bar)
Applications
- Component testing
- Calibration systems
- Laboratory pressure control
- High-pressure sampling systems
- Service and test equipment
Technical data
- Type: Needle valve
- Inlet pressure P1: max. 345 bar
- Material: see ordering info
- Body: see ordering info
- Seat: PCTFE
- Filter: 316 stainless steel
- Inlets / Outlets: see ordering info
- Temperature range: -54 °C to +232 °C
- Leak rate: 0.1 cc/min
- Orifice: see ordering info
- Weight: 0.1 kg
Ordering information
Material, body configuration, inlets/outlets and orifice options are specified in the ordering information.
