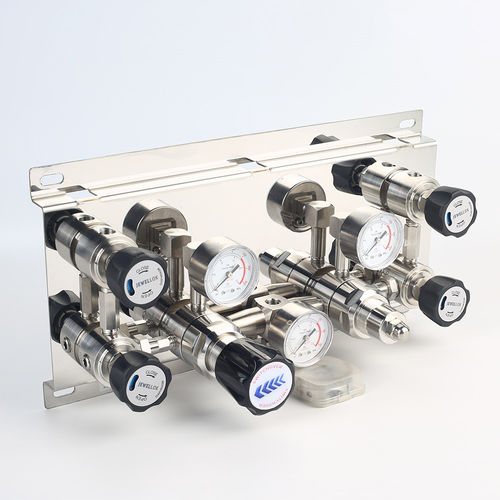

Pressure calibration control panel JSP-3AE Series

stainless steelmodularautomatic

Product overview

The JSP-3AE series pressure control panel is designed for high-purity gas distribution and control in industrial and laboratory environments. It features a modular layout with automatic change-over capability and is compatible with inert, reactive, flammable and oxidizing gases (up to grade 6.0) and corrosive gases when configured in stainless steel.

Key features

• Automatic change-over function for uninterrupted supply
• Single-stage regulator: JSR-1E / JSR-6E series
• Brass chrome-plated body (standard) or SS 316L body and bonnet (for corrosive gases)
• Diaphragm-type shut-off valves
• Suitable for inlet pressures up to 300 bar
• Tested for oxygen service
• Modular design for easy installation into gas cylinder safety cabinets

Typical applications

• Component testing
• Calibration systems
• Laboratory pressure control
• High-pressure sampling systems
• Service and test equipment

Technical data

• Type: single-stage
• Inlet pressure P1: max. 300 bar
• Outlet pressure P2 options: 2 / 4 / 10 / 20 / 50 / 100 bar
• Body materials: brass chrome plated (standard); SS 316L available for corrosive gases — see ordering info
• Valve seat (regulator / shut-off valve): PCTFE
• Diaphragm (regulator): Hastelloy® C276; diaphragm (valve): Elgiloy®
• O-ring: Viton® (FKM); optional: Kalrez® (FFKM)
• Filter: SS 316L
• Inlet / outlet connections: 1/4" NPT(F)
• Operating temperature range: -30°C to +74°C
• Leak rate to atmosphere: 1×10^-8 mbar·L/s He; via seat: 1×10^-6 mbar·L/s He
• Weight: 4.8 kg

Documentation & drawings
Schematic drawing, flow chart, outlet pressure curves and dimension drawings are provided as product images on the page.

Ordering information
Detailed ordering codes, configuration images and material options are available on the product page; consult ordering info for regulator/valve material combinations and special options.
