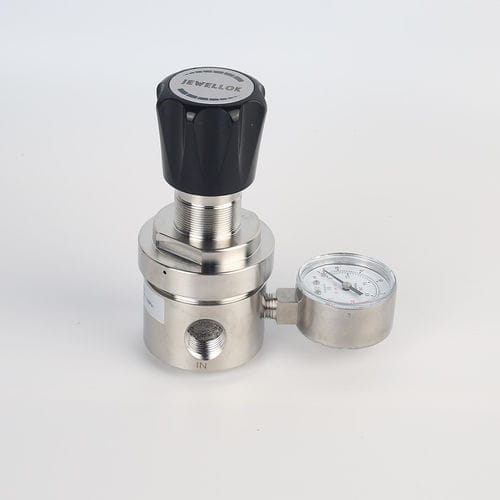

Propane pressure regulator JSR seriesfor nitrogenfor oxygendiaphragm
Add to favorites
Compare this product
Characteristics
- Product
- for oxygen, for nitrogen, propane
- Technology
- diaphragm
- Number of stages
- single-stage
- Material
- chrome-plated brass, 316 L stainless steel
- Applications
- industrial, laboratory, for tests, for watertightness testing
- Other characteristics
- line
- Pressure
Min.: 1 bar
(14.5 psi)Max.: 100 bar
(1,450.38 psi)- Orifice diameter
Min.: 0 mm
(0 in)Max.: 600 mm
(23.622 in)- Temperature
Min.: -30 °C
(-22 °F)Max.: 74 °C
(165.2 °F)
Description
Product features
Typical applications
Dimensions (mm)
Dimensional drawings and images available on the product page (refer to product images for detailed dimension illustrations).
Technical specifications
- Line and panel mounting pressure regulator
- Brass chrome-plated body and bonnet for inert, reactive, flammable and oxidizing gases and mixtures up to grade 6.0
- Stainless steel 316L body and bonnet for corrosive gases
- Four-port flexible configuration
- Stable outlet pressure
- Simple outlet pressure limitation via handwheel
- Inlet filler
- Tested for use with oxygen
Typical applications
- Component testing
- Calibration systems
- Laboratory pressure control
- High-pressure sampling systems
- Service and test equipment
Dimensions (mm)
Dimensional drawings and images available on the product page (refer to product images for detailed dimension illustrations).
Technical specifications
- Type: single-stage
- Inlet pressure P1: max. 100 bar
- Outlet pressure P2: 1 / 2 / 4 / 8 / 10 / 20 / 35 / 50 bar
- Materials: see ordering info for selectable body materials
- Body regulator: see ordering info
- Valve seat: PCTFE
- Diaphragm: Hastelloy® C276; PTFE + Neoprene (NP option)
- O-ring: Viton® (FKM); option Kalrez® (FFKM)
- Filter: SS 316L
- Inlets and outlets: see ordering info
- Temperature range: -30℃ to +74℃
- Leak rate (to atmosphere): 1×10⁻⁸ mbar l/s He
- Leak rate (via seat): 1×10⁻⁶ mbar l/s He
- Flow capacity: Cv = 1.7
- Weight: 2.8 kg
