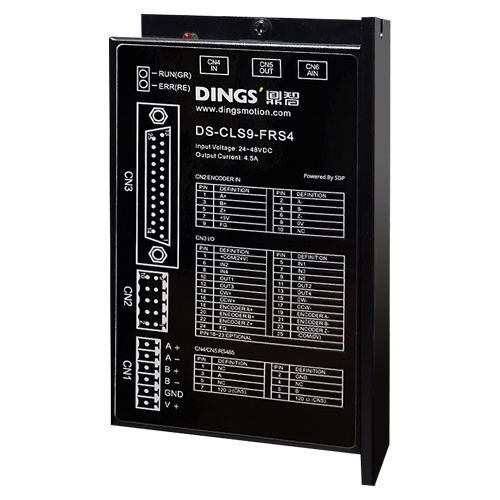

Stepper motor driver DS-CLS9-FRS4

DC

Summary Closed loop stepping motor systems perfectly resolve the problems of open loop control systems, such as step out and position completion check. Advantages 1. The back mounted encoder constantly monitors the current position and prevents step out from occurring. If step out does occur due to external forces or overloading, an alarm signanl will be sent to the host controller. The host controller can than recognize that step out has occurred. 2. Detects current position by encoder feedback, so the torque can be adjusted to match the desired speed and loads. 3. It completely stops when motor stops so hunting dows not occur compare to conventional AC servo. It's very suitable for high speed and short pitch of vision inspection applications. 4. By Setting of boost current parameters, it optimizes the acceleration and deceleration characteristics of the motor. 5. Based on RS-485 communication connection, multi-axes control supports. 16 Axes and baudrate is 9,600~192,000bps. 6. From basic stepping motor control system, position control, speed and torque control modes are also available. 7. Driver and equipment can be protected by 12 kinds of alarms such as motor connection error, encoder connection error and etc.
