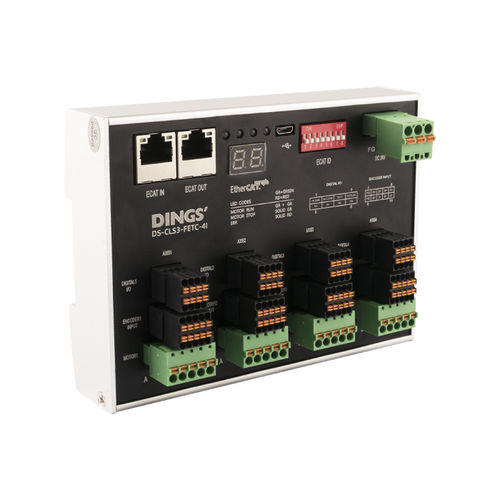

Two-phase stepper motor controller DS-CLS3-FETC-4I
five-phase stepperthree-phase stepperDC

Two-phase stepper motor controller - DS-CLS3-FETC-4I - Jiangsu DINGS' Intelligent Control Technology - five-phase stepper / three-phase stepper / DC
Two-phase stepper motor controller - DS-CLS3-FETC-4I - Jiangsu DINGS' Intelligent Control Technology - five-phase stepper / three-phase stepper / DC
Add to favorites
Compare this product
Go to the Jiangsu DINGS' Intelligent Control Technology website for more information

Characteristics

Motor type
two-phase stepper, five-phase stepper, three-phase stepper, DC
Input/output
digital input, 2 digital outputs
Other characteristics
closed-loop, EtherCAT, 4-axis
Input voltage

Min.: 24 V

Max.: 36 V

Current

Min.: 0.4 A

Max.: 3 A

Description

1. Input power : DC 24V - 36V 2. Output rated current (peak value) : 0.4 - 3A 3. PWM constant current bipolar micro-stepping drive 4. Support EtherCAT communication protocol, support control mode PP, PV, HM, CSP, CSV 5. Optically isolated inputs 6. Motor short circuit protection, under-voltage protection, over-voltage protection, overcurrent protection, etc. 7. Maximum support for 4-axis control
