Ultrasonic flow meter CL-1-4S-QK
volumefor gasDN50 - 2"

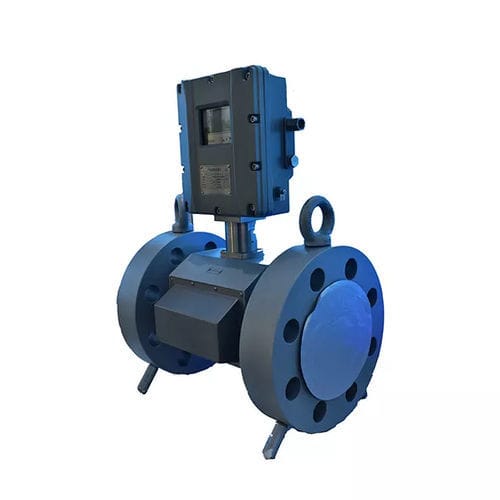

Ultrasonic flow meter - CL-1-4S-QK - Jiangsu Flowna Intelligent Technology Co. Ltd - volume / for gas / DN50 - 2"
Ultrasonic flow meter - CL-1-4S-QK - Jiangsu Flowna Intelligent Technology Co. Ltd - volume / for gas / DN50 - 2"
Ultrasonic flow meter - CL-1-4S-QK - Jiangsu Flowna Intelligent Technology Co. Ltd - volume / for gas / DN50 - 2" - image - 2
Ultrasonic flow meter - CL-1-4S-QK - Jiangsu Flowna Intelligent Technology Co. Ltd - volume / for gas / DN50 - 2" - image - 3
Ultrasonic flow meter - CL-1-4S-QK - Jiangsu Flowna Intelligent Technology Co. Ltd - volume / for gas / DN50 - 2" - image - 4
Add to favorites
Compare this product

Characteristics

Technology
ultrasonic
Type
volume
Fluid
for gas
Pipe diameter
DN50 - 2"
Installation
flange
Communication
4-20 mA
Supply voltage
24VDC
Protection level
IP66
Applications
industrial, for the oil and gas industry
Process temperature

Min.: -20 °C
(-4 °F)

Max.: 60 °C
(140 °F)

Process pressure

Min.: 0.1 MPa

Max.: 40 MPa

Repeatibility

0.1 %

Description

CL-1-4S-QK type is specially designed for high pressure gas storage, which is suitable for transfer metering of natural gas trade and unconventional gas (Methane gas, coal bed gas, shale gas) trade with four path configurations which could carry out accuracy measurement of natural gas and has good adaptability to intermittent flow, full flow, whirlpool flow, pulsating flow and other unstable flow fields of gas. The measuring bores ranges from DN50~DN400 and the working pressure covers from 0.1MPa to 26MPa (higher working pressure could reach 40MPa) with 0.5 class accuracy.
