Current transformer FSCT-T36split-corefor outdoor servicesingle-phase
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- split-core
- Applications
- for outdoor service
- Electrical characteristics
- single-phase
- Mounting
- through-hole
- Norms
- IEC
- Other characteristics
- toroidal, epoxy resin, AC, waterproof
- Secondary voltage
Min.: 0 V
Max.: 3 V
0.3 V
- Primary current
Min.: 0 A
Max.: 600 A
- Secondary current
Min.: 0 A
Max.: 5 A
5 A
- Frequency
Min.: 50 Hz
Max.: 60 Hz
Description

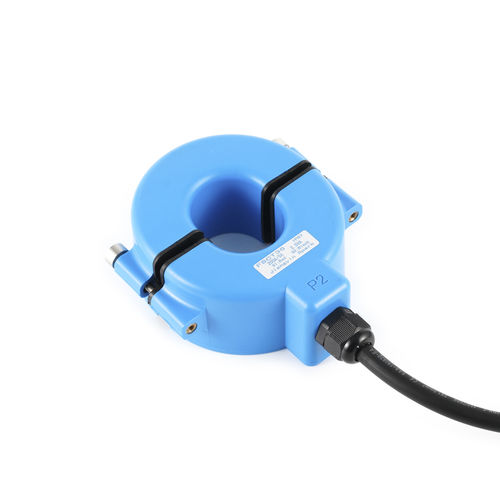

IP67 FSCT-T36 Outdoor Waterproof Split Core Current Transformer
SPECIFICATIONS:
1.Rated current:0-600A
2.Rated output:5A or 1A
2.Insulation Voltage:3KV
3.Rated Frequency:50HZ/60HZ
4.Operating Temperature:-15℃to 60℃
5.Waterproof Class:IP67 Waterproof
6. Class:1.0 or 0.5
FEATURES:
1.Small cost
2.Split core design ,Easier installation
3 .Build diode ,no high voltage danger
4.Good linearity at very low current
Other Jiangyin Spark Electronic Technology Co.,LTD products
Outdoor Waterproof Split Core Current Transformer(CT)
