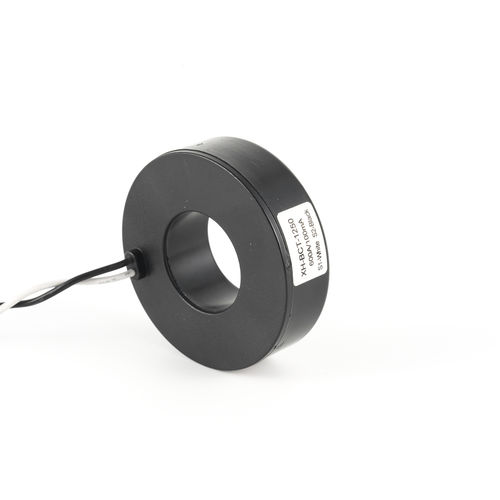

Current transformer BCT-1250split-coresubstationfor photovoltaic applications
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- split-core
- Applications
- for energy meters, for photovoltaic applications, substation, for inverters
- Electrical characteristics
- single-phase, inductive voltage
- Mounting
- through-hole
- Norms
- IEC, RoHS, UL
- Other characteristics
- AC
- Secondary voltage
Min.: 0 V
0.3 V
Max.: 3.3 V
- Primary current
Min.: 0 A
Max.: 600 A
- Secondary current
Min.: 0 mA
Max.: 600 mA
- Frequency
Min.: 50 Hz
Max.: 60 Hz
Description
BCT-1250 Solid Core Current Transformer CTs
Specifications:
1.Rated current:0-600A
2.Rated output:mA or mV(0.333V)
3.Rated Voltage：0.66KV
4.Insulation Voltage：5400V
CATIII 600V or CATIV 250V
5.Rated Frequency：50HZ/60HZ
6.Operating Temperature：-35℃to 65℃
7.Flame resistance：UL94-V0
8.Leads : UL 1015 18AWG-22AWG
9.Certificates: UL2808 and IEC61010-1
Features:
1.Small cost
2.Split core design ,Easier installation
3 .Build diode ,no high voltage danger
4.Good linearity at very low current
Applications:
Power metering
Sub-metering for building, energy efficiency monitoring, consumption analysis, and cost allocation
Power quality monitoring for distribution system equipment
Condition monitoring for conveyors, pumps, etc.
Hybrid inverter for home energy storage
Distributed measurement systems
