Application:

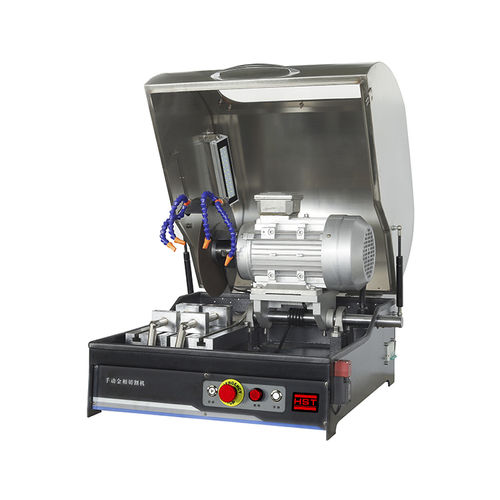

Model SQ-100 Metallographic specimen cutting machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure. It has cooling system so as to clear up the heat produced during cutting and avoid to burn the metallographic or lithofacies structure of specimen because of superheat. This machine features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Feature
1.Quick clamping vice.
2.LED Lighting system
3.60L water cooling system
4.Fully enclosed stainless steel structure
2. Main specifications:
ModelSQ-100
Max. cutting diameter100mm
Cooling methodT-slot worktable, dual drive vises
Outside cooling system
Power supplythree phase four line (380v/50Hz)
MotorY2-1001-2-2 3 kw
Rotate Speed2800r/min
Abrasive wheel¢250X2.5X32mm
Cutting machine size280X260mm
Dimension820x780x650mm
Weight95kg
