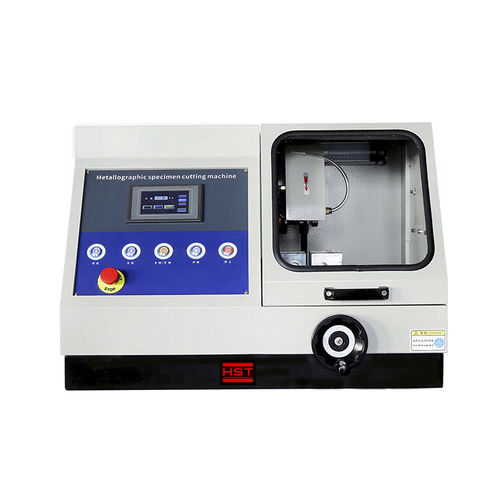

Rotary blade cutting machine Q-100B

for metalsamplemetallographic

Model Q-100B manual / automatic metallographic specimen cutting machine is equipped with big cutting room and movable T-shape work table. Therefore this machine has the ability of cutting rectangle and large specimens. Also the equipped separate type vice is very convenient for operator to clamp various heterotypic work pieces. Various cutting data can be displayed on high definition backlight type LCD screen, manual cutting and automatic cutting means can be switched at will. Large cutting chamber, tempered glass observing window and it is equipped with 60L cooling liquid water tank. Non-burning loss swing type cutting means that improved the cutting quality. Automatic withdraw function after cutting is finished, bidirectional feeding means increase the length of deep cutting. Main specifications: Display - LCD with high resolution back lit dot matrix cutting disc speed - 2100rpm Cutting diameter - 100mm max moving travel - 125mm max working table travel - 275mm Cutting disc specification - 350 ×2.5 ×32mm Motor - 3.3kw Feed speed - 1-10mm/min power supply - three phases, 380V, 50Hz Net weight - 220Kg Dimension - 900 x 850 x 620mm
