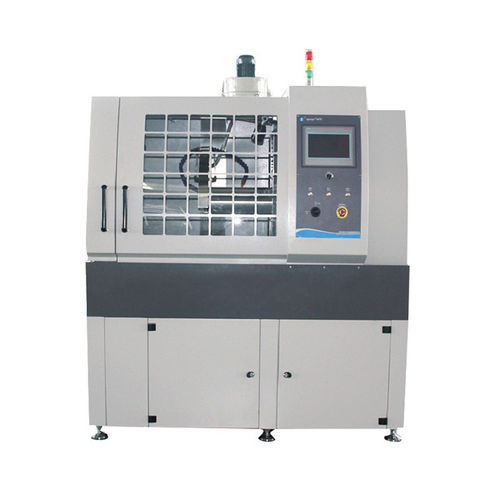

Knife cutting machine Iqiege-600for metalfor plasticsfor fabrics
Add to favorites
Compare this product
Characteristics
- Technology
- knife
- Material
- for metal, for plastics, for fabrics, for composite materials
- Product handled
- sheet metal, tube, for aluminum profiles, sheet
- Control type
- servo-driven
- Associated function
- polishing, grinding
- Applications
- metallographic
- Other characteristics
- automatic
Description
Iqiege-600 Automatic sample is a large automatic cutting machine, which provides you with a powerful way to make cutting and preparation process available. It has a stable quality, accuracy and certainly. Every day the machine can take a large workpiece cutting. It is fast, efficient and safe with high precision stepper motor, Siemens programmable controller and touch screen, high controllability and strong control ability, which is the ideal choice for preparation.
Main specifications:
Cutting Model - Chopping cut, Pushing cut
Cutting Speed - 0.05-5mm/s (adjust 0.01mm)
Frequency control - 0-1900RPM
Max Travel - 200mm at Z axis, 300mm at Y axis, 200mm at axis
Cutting room size - 680mm*1030mm
Cutting power - 11KW
Cutting wheel size - 610mm*4mm*38.1mm
Spindle rotation - 2200 RPM
MAX cutting diameter - 190mm
Voltage - 380V/50Hz/three phase
Dimension - 2670mm*1770mm*2435mm
