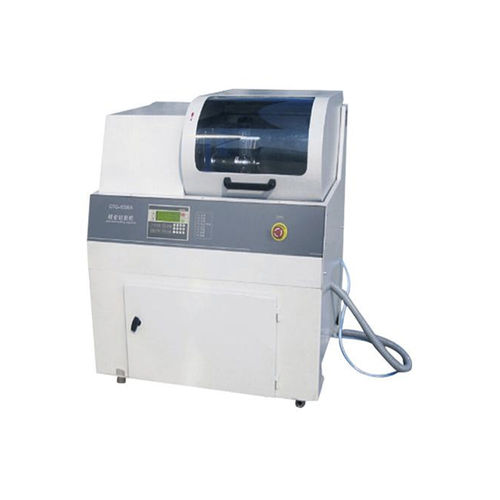

Knife cutting machine GTQ-5000A

for metalfor plasticsfor leather

GTQ-5000A Enhanced metallographic Specimen Precision Cutting Machine is suitable for metal, electronic components, crystal, hard alloy, rock, ore, concrete, organic material, biological material (tooth, bone) and other materials. The equipment sets high precision location and has large speed range. The cutting ability is strong and meanwhile the machine has strong cooling system. It can preset feeing speed and menu control with LCD. It is easy to control. Automatic cutting can reduce operator’s fatigue to ensure the consistency of the specimen. It has large and bright cutting chamber which is equipped with safety switch. The upper and lower distance of cutting disc can be adjusted, this is favourable for the cutting disc after a certain period of using. Therefore, it is an ideal equipment for the industrial and mining enterprises and the scientific research institutes. Technical Parameters: Feed Speed - 0 ~ 1.50mm/min (adjusted step length 0.01mm) Spindle Speed - 1950r/min Maximum stroke - Z 50mm Y200mm X50mm Cutting disc specification - 200*1*32mm Maximum Cutting Diameter - 60 mm The Largest Travel - Y-axis 200 mm Cutting Power - 1.8KW Power Supply - 380 V, 50 Hz Dimension - 1000*1035*1200 mm Weight - 210kg
