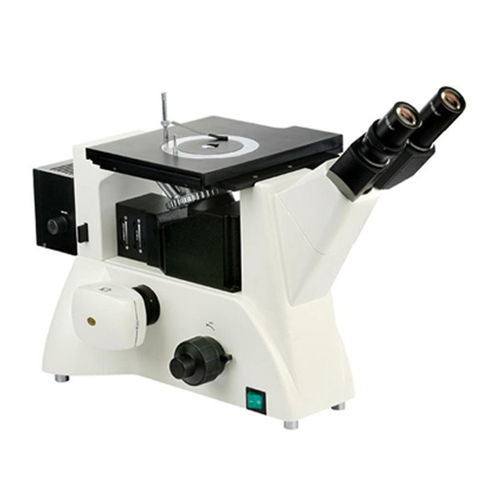

Metallographic microscope OBT-5100

metallographic microscope
metallographic microscope
Add to favorites
Compare this product


Technical applications
Microscope head
Observation technique
dark field
Other characteristics
ergonomic, long working distance


1.Application OBT5100 Trinocular Inverted Metallurgical Microscope is equipped excellent infinity optical system and modularization function design, you can easily upgrade the system to achieve polarization observation, dark field observation and other functions. Compact and stable high rigidity body,fully embodies the anti-vibration requirements of microscope operation. Ideal design for ergonomic requirements, make the operation more convenient and comfortable, and space wider. Suitable for microscopic observation of the microstructure and surface morphology, it is the ideal instrument for metal, mineralogy, precision engineering research. 2.Technical Features 2.1.Total magnification: 100-2000 times 2.2.Optical System: Infinity color correction optical system (CSIS), better image quality, higher resolution, more comfortable observation 2.3.Objective: Infinity, long working distance, professional Metallurgical objective 50 times and 100 times, is a semi-apochromatic objective lens, a substantial increase in image clarity. 2.4.Eyepiece: High eye-point, wide field of vision flat field eyepieces, PL10x / 22mm, providing a more wide flat space observation and installation of all types for measuring micrometer. 2.5.Observation tube:Compensation Free Trinocular,diopter can be adjusted,45°tilt,can photography and collection and preservation the observed image,configuring computers and specialized software for image analysis. 2.6.Focusing mechanism: Low hand position coarse tune coaxial Focusing mechanism,with coarse tension adjustment device,coarse per rotation stroke 38mm,fine-tuning accuracy 0.002mm.
