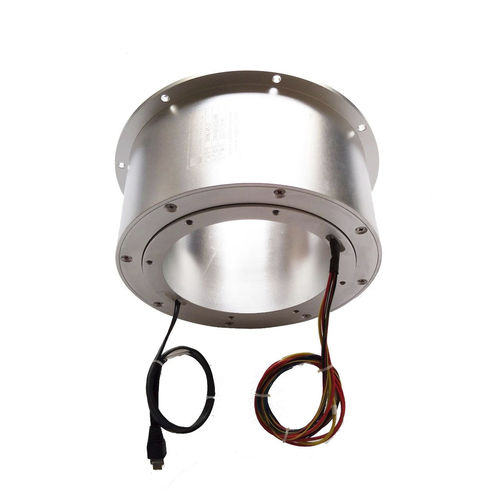

Custom electrical slip ring DHK145-21hydraulicEthernetHDMI
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic, Ethernet, HDMI, gigabit Ethernet, HD-SDI, CAN bus, PROFIBUS, USB, serial
- Construction
- hollow-shaft
- Applications
- for sensors, for robotics, packaging machine, for measurement instruments, for cameras, for medical devices, for wrapping machines, video transmission, for robots, military
- Material
- plastic, stainless steel, aluminum
- Other characteristics
- low-torque, compact, fiber brush, conductive, custom, with gold contacts, flange, miniature, waterproof, multi-channel, 4 wires, 8 wires
- Voltage
240 V, 380 V
Min.: 0 V
Max.: 12,000 V
- Primary current
Min.: 1 mA
1 mA, 5 mA, 10 mA, 2,000 mA
Max.: 3,000,000 mA
- Rotational speed
300 rpm, 600 rpm, 1,500 rpm
(1,885 rad.min-1, 3,770 rad.min-1, 9,425 rad.min-1)Min.: 0 rpm
(0 rad.min-1)Max.: 3,000 rpm
(18,850 rad.min-1)- Number of channels
Min.: 1 unit
2 unit, 4 unit, 6 unit, 8 unit, 12 unit
Max.: 200 unit
Description
Ingiant make customized Ethernet slip ring for automatic machine and equipment, we can make 100M Ethernet and 1000M Ethernet slip ring, with stable transmission, no signal crosstalk. Our signal shielding technology is in top of China.
The Ethernet slip ring can be combined with electric power, other type of signal, datas, gas, liquid etc.
Feature:
Gold to Gold electric contact
Long lifespan
High signal transmit performance
Application:
Radar equipment
Medical equipment
Test equipment
Turtable equipment
Marine equipment etc.
