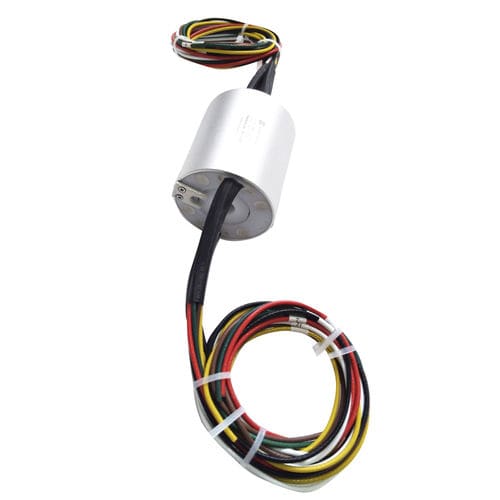

Electric electrical slip ring DHK012-Ⅰ series

RS-485hydraulicfiber optic

Multi-point brush contact material ensure long life Integrated structure design for easy installation Standard model supports 1-48 power rings(0-20A/ring) or 1-96 signal rings(0~5A/ring) Both the data bus agreement compatible Free maintenance DHK012-Ⅰ series through hole slip rings, Inner hole 12.7mm, outer diameter 35mm, suitable for rotating electromechanical systems with a diameter less than 12.7mm, Standard model supports 1-12 power rings(0-20A/ring) or 1-4 signal rings(0~5A/ring). Typical Application winding machines, laser scanners, in-pipe cameras, exhibition/display equipment, vending machine slip rings, CCD visual inspection equipment, intelligent visual systems, automated assembly machines, rotating LED lights, labeling machines, experimental equipment, biological testing instruments, and any other device that requires 360° rotation to conduct electricity or transmit various control signals. (1)Product type: DH—electric slip ring (2)Installation method: K—through hole (3)Through hole product bore diameter:012- inter diameter 12 mm (4)Total circuits: 6-6 circuits (5) Identify number: --1; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHK012-6 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHK012-6-002; if there are more of this model in the future, and so on -003 , -004, etc.
