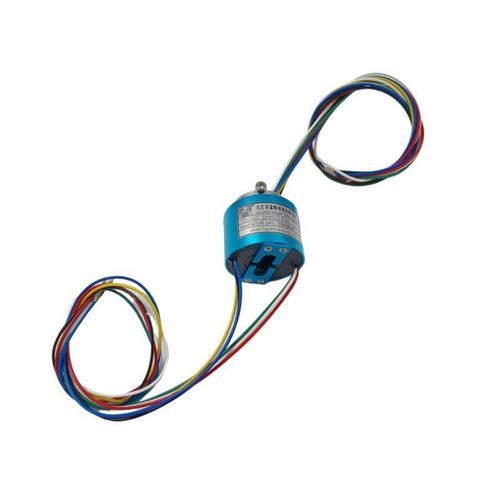

Through-hole slip ring DHK012-6-5A

for CCTV applicationsfor industrial applicationsfor rotary tables

Short Description
Our 12 mm through-hole slip ring (model: DHK012-6-5A) delivers reliable power and signal transmission in a compact 35 mm OD housing. With 6 independent circuits rated 0–5A and 0–240V, gold-to-gold contacts and copper-alloy rings, it is designed for industrial automation, packaging machinery, CCTV turntables and test rigs.

Key Specifications

• Dimensions: 12 mm inner bore × 35 mm outer diameter
• Circuits: 6 rings, 0–5A per ring, 0–240V AC/DC
• Contact system: Gold-to-gold contacts; copper alloy rings (Ag≥1um plating)
• Performance: Up to 250 rpm; operating temperature -30°C ~ +80°C
• Protection: IP51
• Typical use: automation, CCTV, packaging, rotary tables

Key Features

• Space-saving design: 12 mm inner bore and 35 mm outer diameter for easy integration with shafts or concentric assemblies
• Stable electrical performance: 6 independent circuits supporting 0–5A and 0–240V AC/DC with ultra-low contact resistance (Static <0.005Ω, Dynamic <0.01Ω)
• Premium contact system: Gold-to-gold contacts for low electrical noise and long service life compared with carbon brushes
• High-grade conductive rings: Copper alloy base with precious metal plating (Ag≥1um, Ra<0.4) for conductivity and corrosion resistance
• Rugged operating range: Continuous rotation up to 250 rpm and reliable operation from -30°C to +80°C
• Safety & insulation: 500MΩ @ 500VDC insulation resistance; 500V@50Hz dielectric strength, 60s no breakdown
• Protection class: IP51 — basic indoor industrial protection (not fully waterproof)

Technical Specifications (table)
Parameter — Specification
Inner Bore (Hole Size) — 12 mm
Outer Diameter — 35 mm
Number of Circuits — 6 rings
Current Rating — 0–5A per ring
Voltage Rating — 0–240V AC/DC (Working voltage 220VAC)
Contact Material — Gold-to-Gold
Ring Material — Copper alloy + precious metal plating (Ag≥1um, Ra<0.4)
Contact Resistance Variation — Static <0.005Ω, Dynamic <0.01Ω
Insulation Resistance — 500MΩ @500VDC (25°±5, RH <85%)
Dielectric Strength — 500V@50Hz, 60s no breakdown (25°±5, RH <85%)
Operating Temperature — -30°C ~ +80°C
Rotating Speed — Up to 250 rpm
Protection Class — IP51

Typical Applications

• Rotary tables & indexing equipment
• Packaging and filling machines
• CCTV camera turntables & surveillance systems
• Automated production lines
• Laboratory test rigs and rotary sensors
• Wind turbine pitch control (low-power signal)

Customization & OEM Service

• Customizable circuit counts (2–72)
• Mixed power and signal options (Ethernet, USB, encoder, thermocouple)
• Options for higher speed (up to 3000 rpm) and higher IP rating (IP65/IP67)
• Special cable lengths or connectors; technical drawings provided on request
